Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram

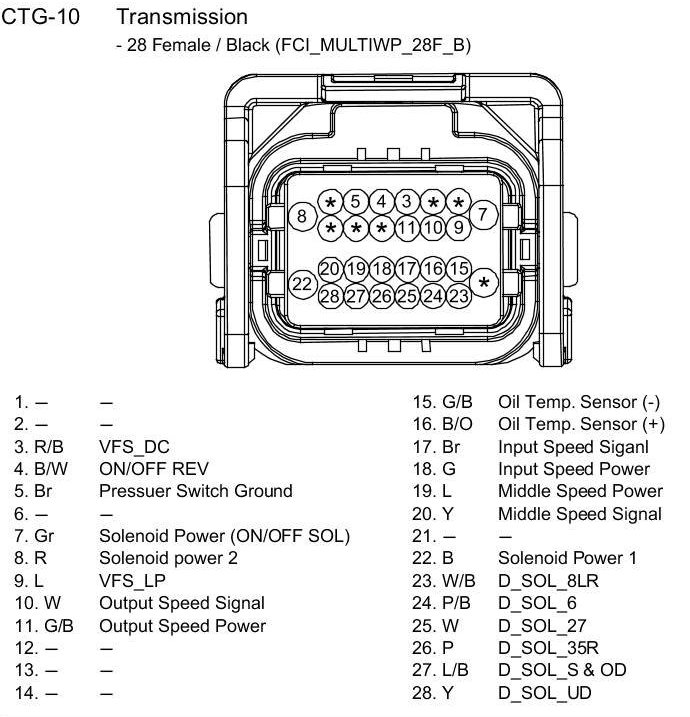

CTG-10 Transmission:
