Hyundai
>>
2012
>>
Equus V8-5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

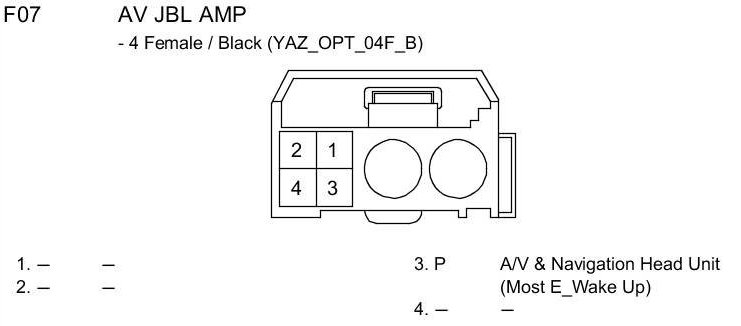

F07 AV JBL AMP:

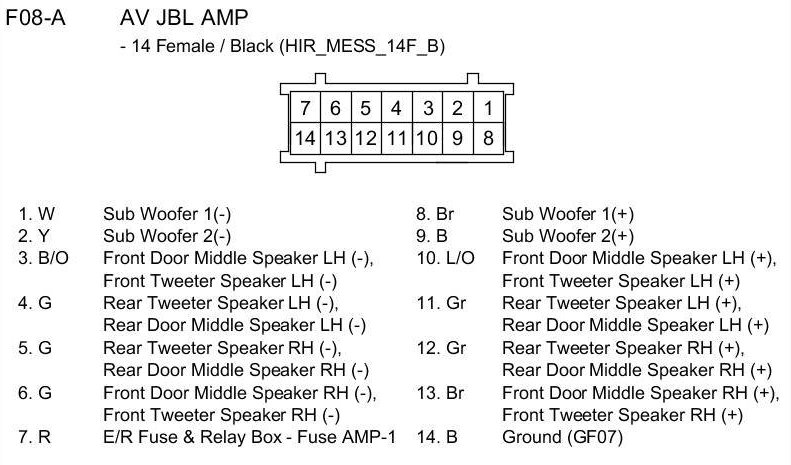

F08-A AV JBL AMP:

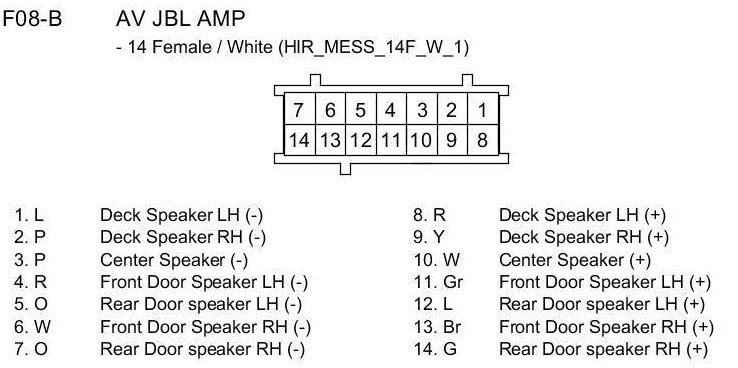

F08-B AV JBL AMP:
