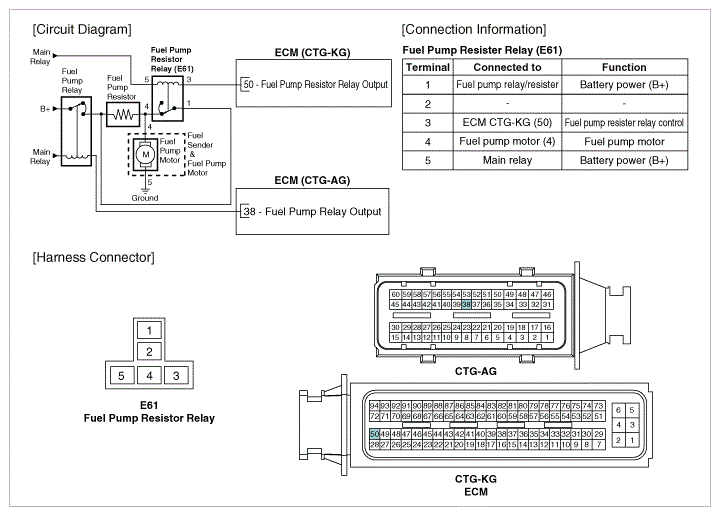

Home >> Hyundai >> 2012 >> Equus Signature >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 5.0L >> Fuel Pump Resister >> Schematic Diagrams >> Circuit Diagram
