System Specifications





Specifications

Front Suspension





Rear Suspension






Wheel and Tire






Wheel Alignment






Tightening Torques

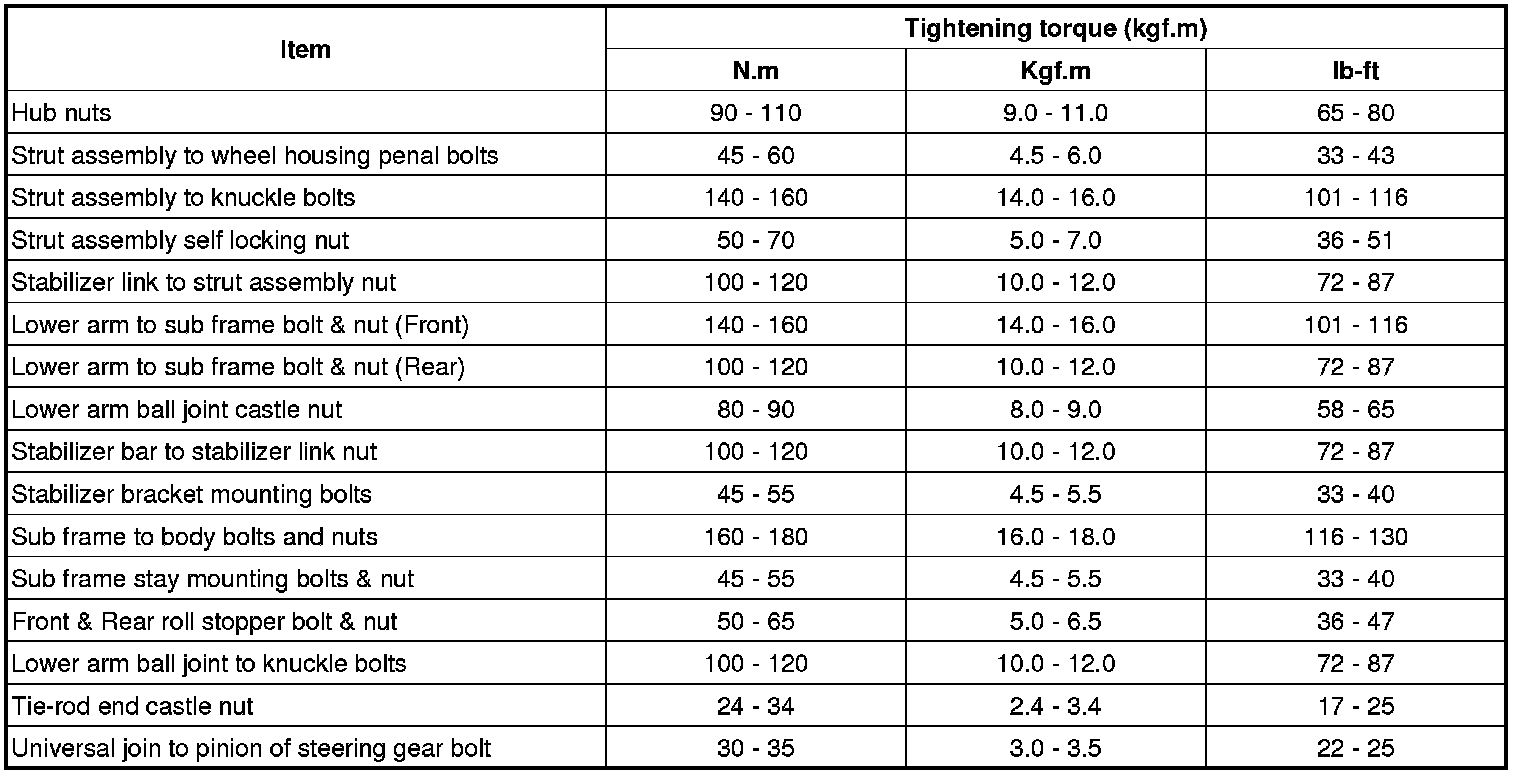

Front Suspension

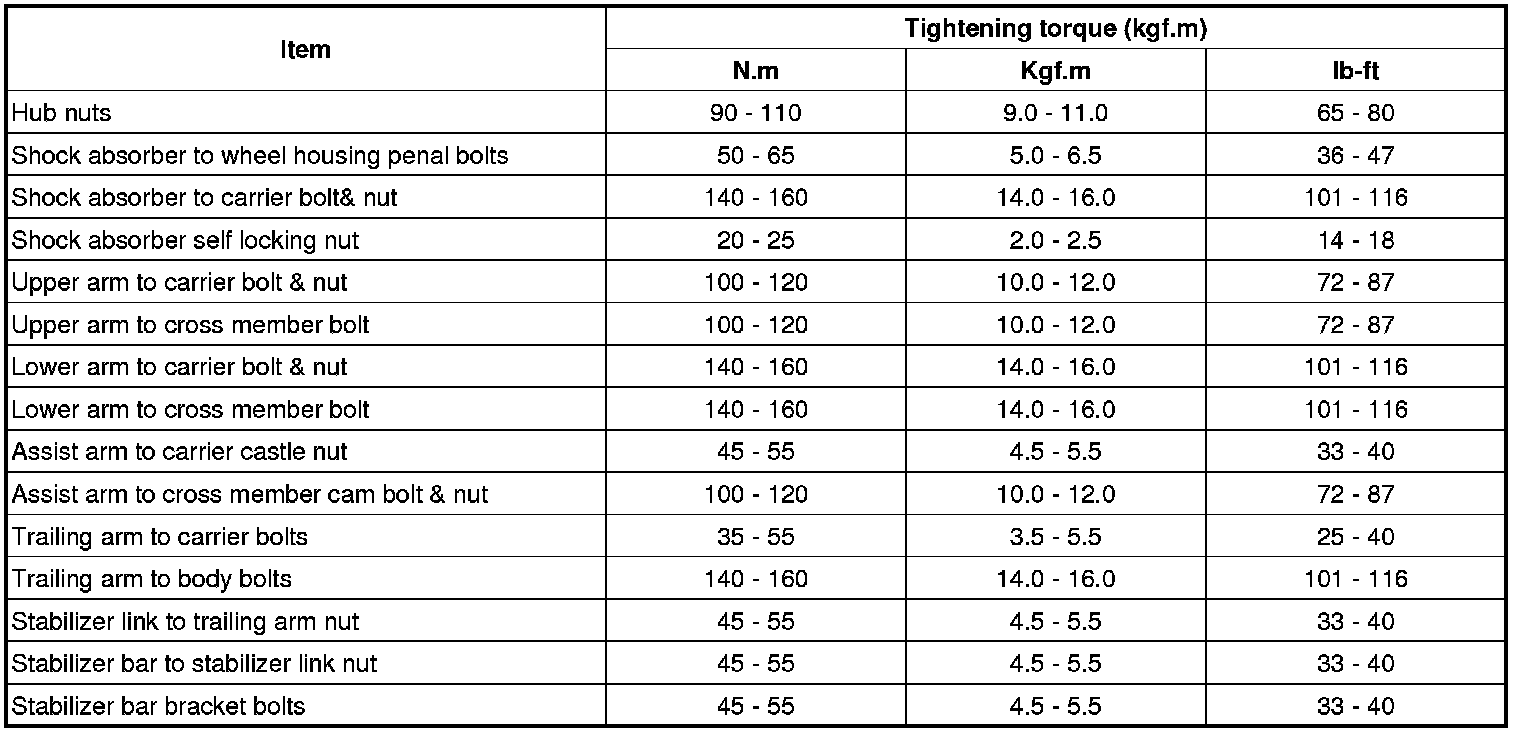

Rear Suspension
