Axle Shaft Assembly

Specification

Driveshaft





BJ : Birfield Joint
TJ : Journal Tripod Joint
SFJ : Shudderless Free-ring Joint
UTJ : U-TYPE Tripod Joint
Inner : On transaxle side
Outer : On tire side

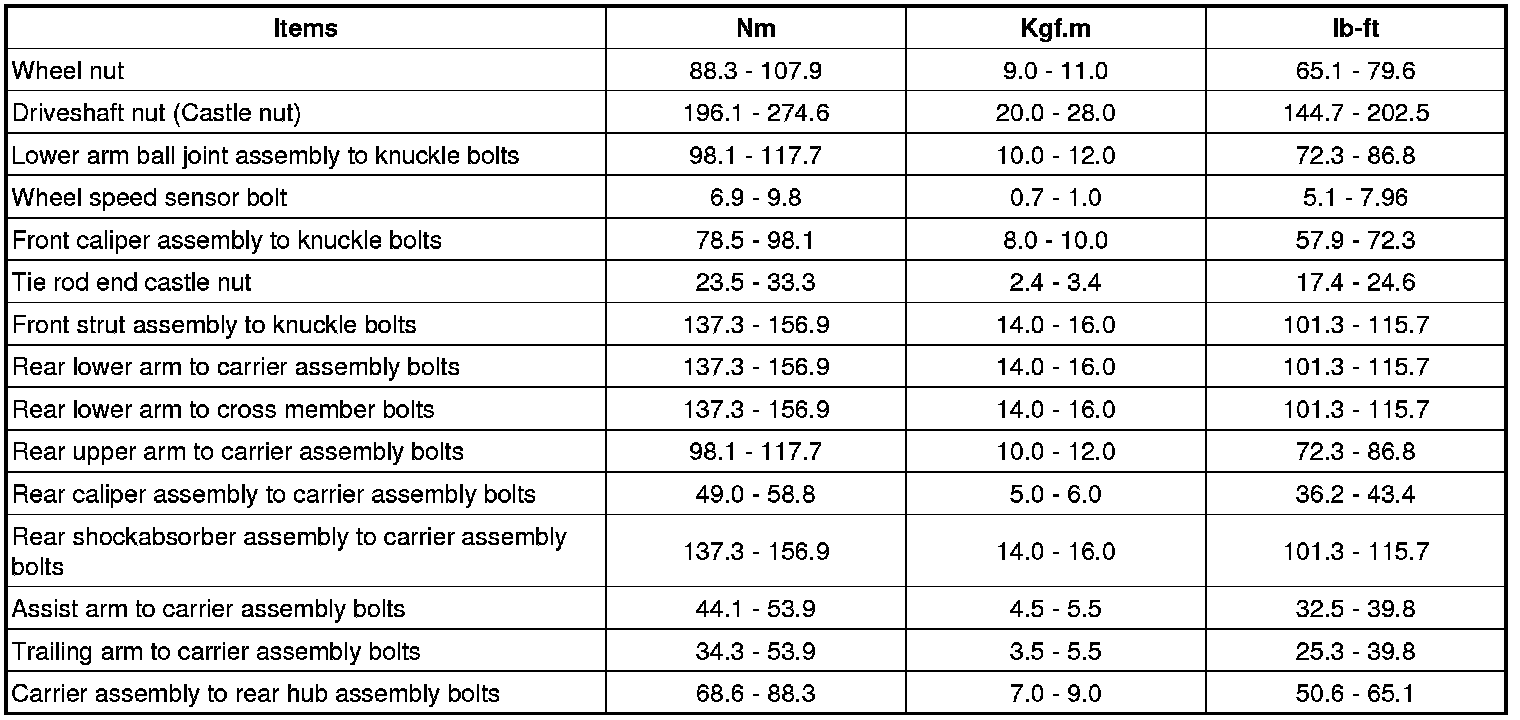

Tightening Torque






CAUTION:
Replace self-locking nuts with new ones after removal.

Lubricants
