Home >> Hyundai >> 2012 >> Elantra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Passenger Seat Warmer Module

Passenger Seat Warmer Module

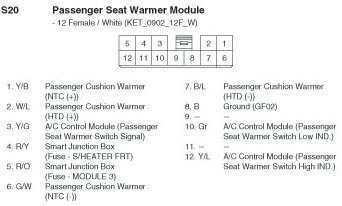

S20 Passenger Seat Warmer Module:
