Home >> Hyundai >> 2012 >> Elantra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box

Relay Box

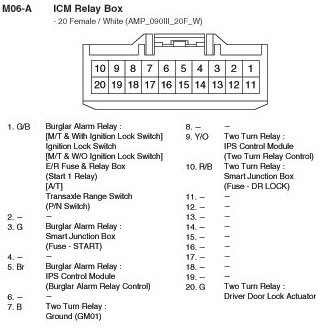

M06-A ICM Relay Box:

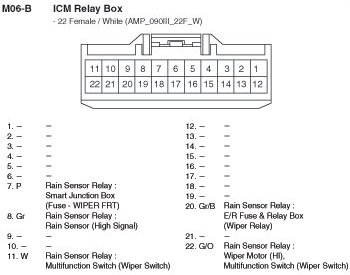

M06-B ICM Relay Box:
