Home >> Hyundai >> 2012 >> Elantra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Power Window Main Switch

Power Window Main Switch

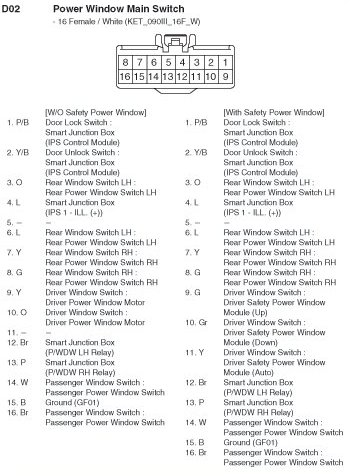

D02 Power Window Main Switch:
