Home >> Hyundai >> 2012 >> Elantra L4-1.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector

Multiple Junction Connector

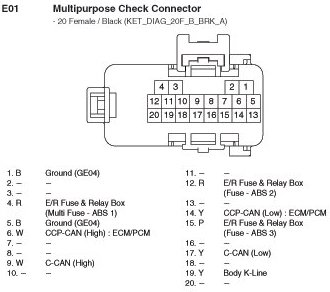

E01 Multipurpose Check Connector:
