Components And Components Location: Components

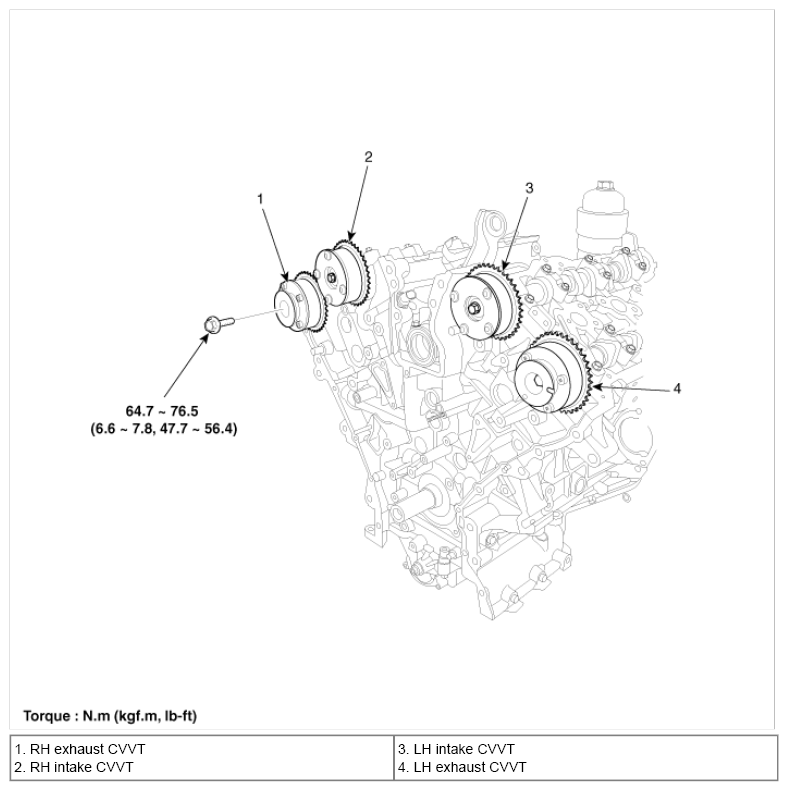

Fig 1: CVVT Assembly With Torque Specifications

G08809195

Courtesy of HYUNDAI MOTOR AMERICA
