Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starter Relay

Starter Relay

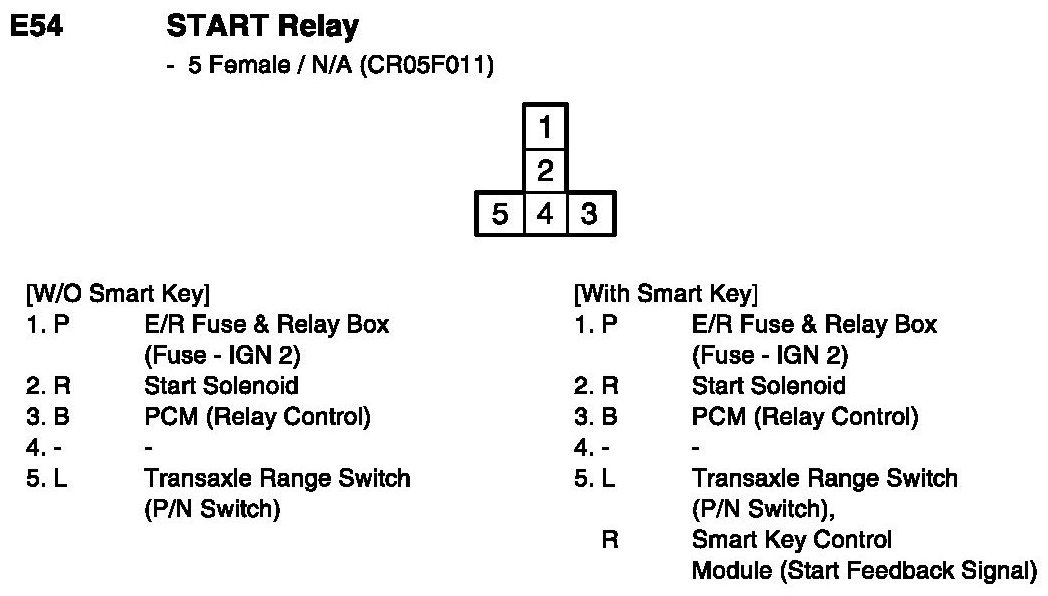

E54 Start Relay:
