Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Indicator - A/T

Shift Indicator - A/T

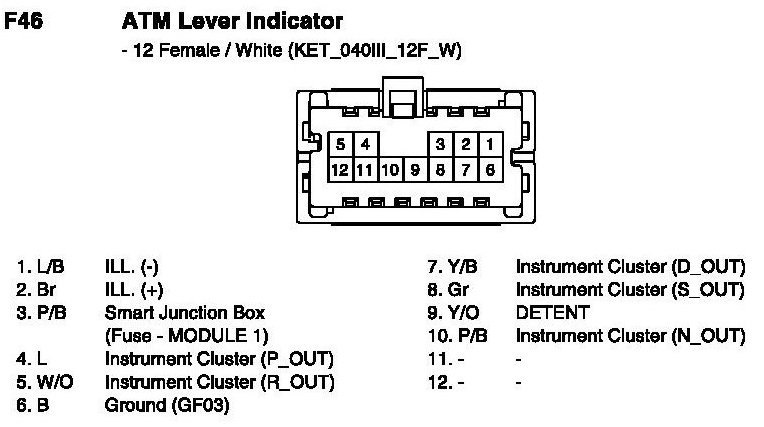

F46 ATM Lever Indicator:
