Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Bladder

Seat Bladder

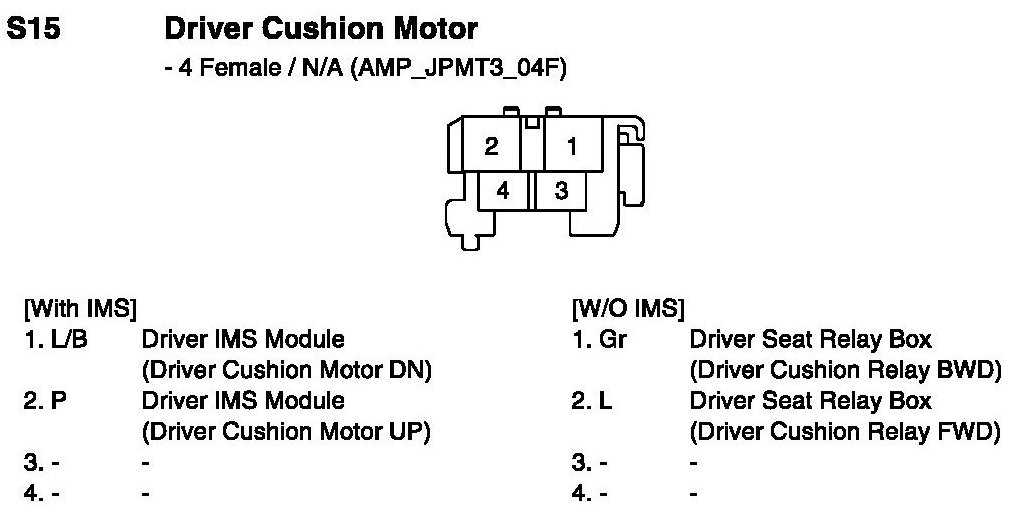

S15 Driver Cushion Motor:
