Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Switch >> Passenger Reclining Limit Switch

Passenger Reclining Limit Switch

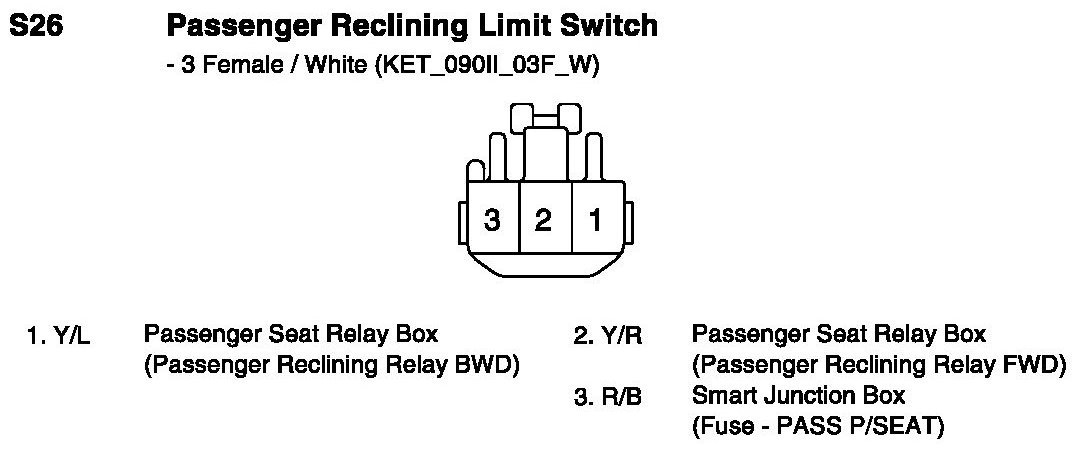

S26 Passenger Reclining Limit Switch:
