Impact Sensor
>>
Rear Side Impact Sensor RH
Rear Side Impact Sensor RH

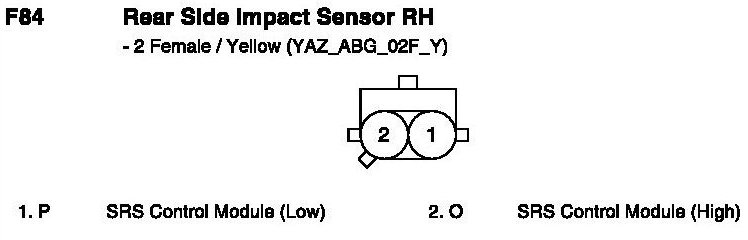

F84 Rear Side Impact Sensor RH:
