Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Pump

Fuel Pump

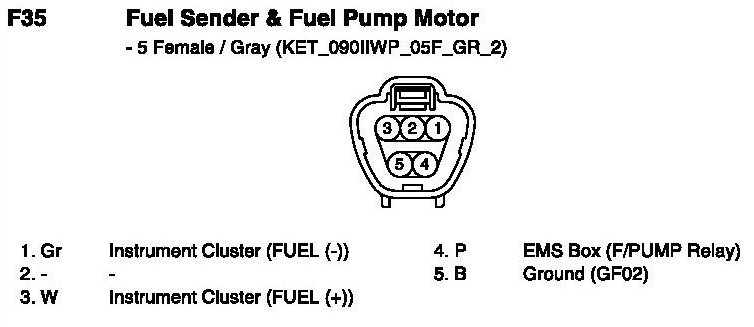

F35 Fuel Sender & Fuel Pump Motor:
