Engine - Coolant Temperature Sensor/Switch
Engine - Coolant Temperature Sensor/Switch

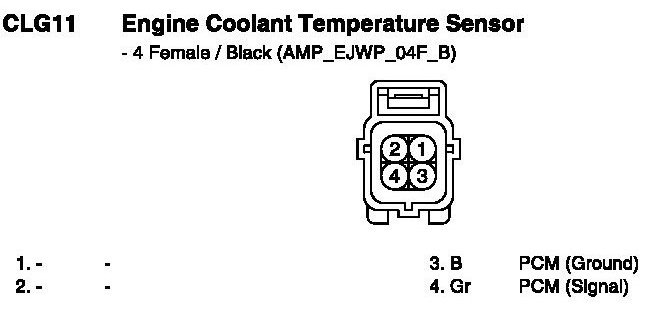

CLG11 Engine Coolant Temperature Sensor:
