Azera V6-3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
Console Lamp Switch
Console Lamp Switch

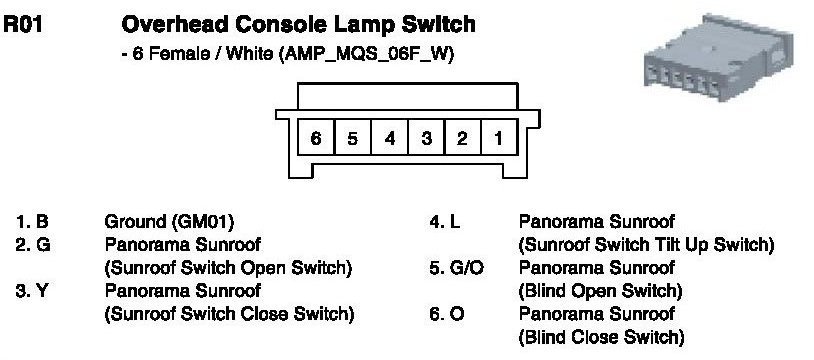

R01 Overhead Console Lamp Switch:
