Ambient Temperature Sensor / Switch HVAC
Ambient Temperature Sensor / Switch HVAC

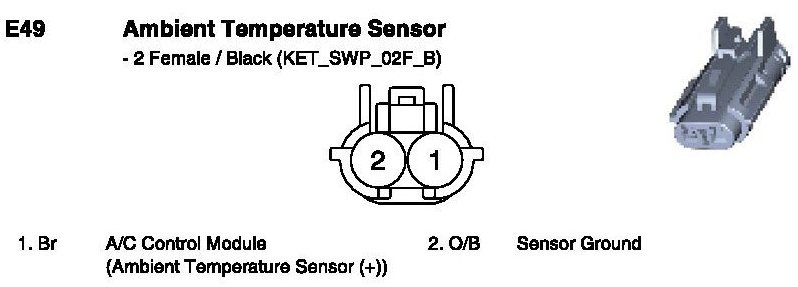

E49 Ambient Temperature Sensor:
