Power Window Relay: Locations

Fuse & Relay Information

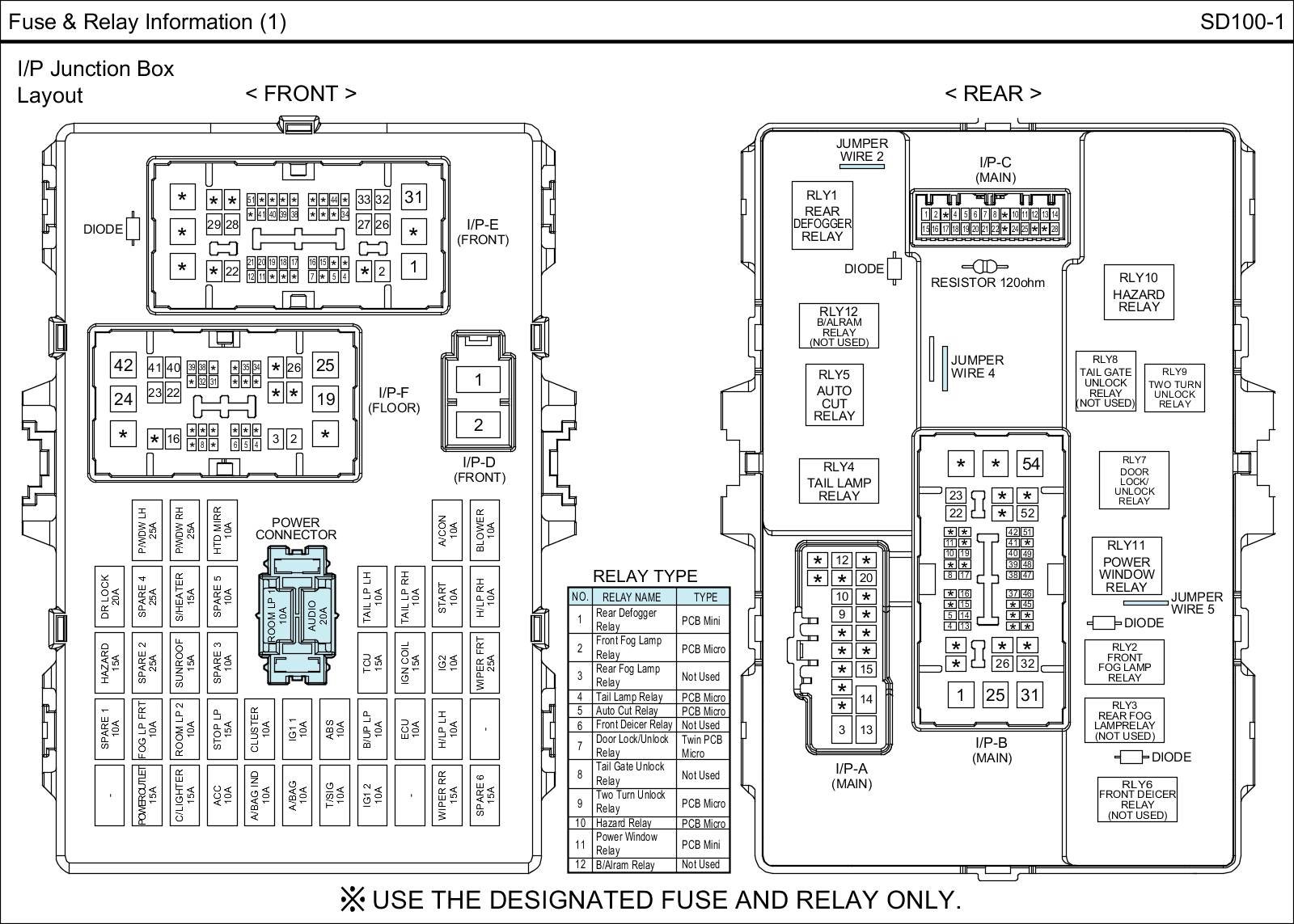

I/P Junction Box View:

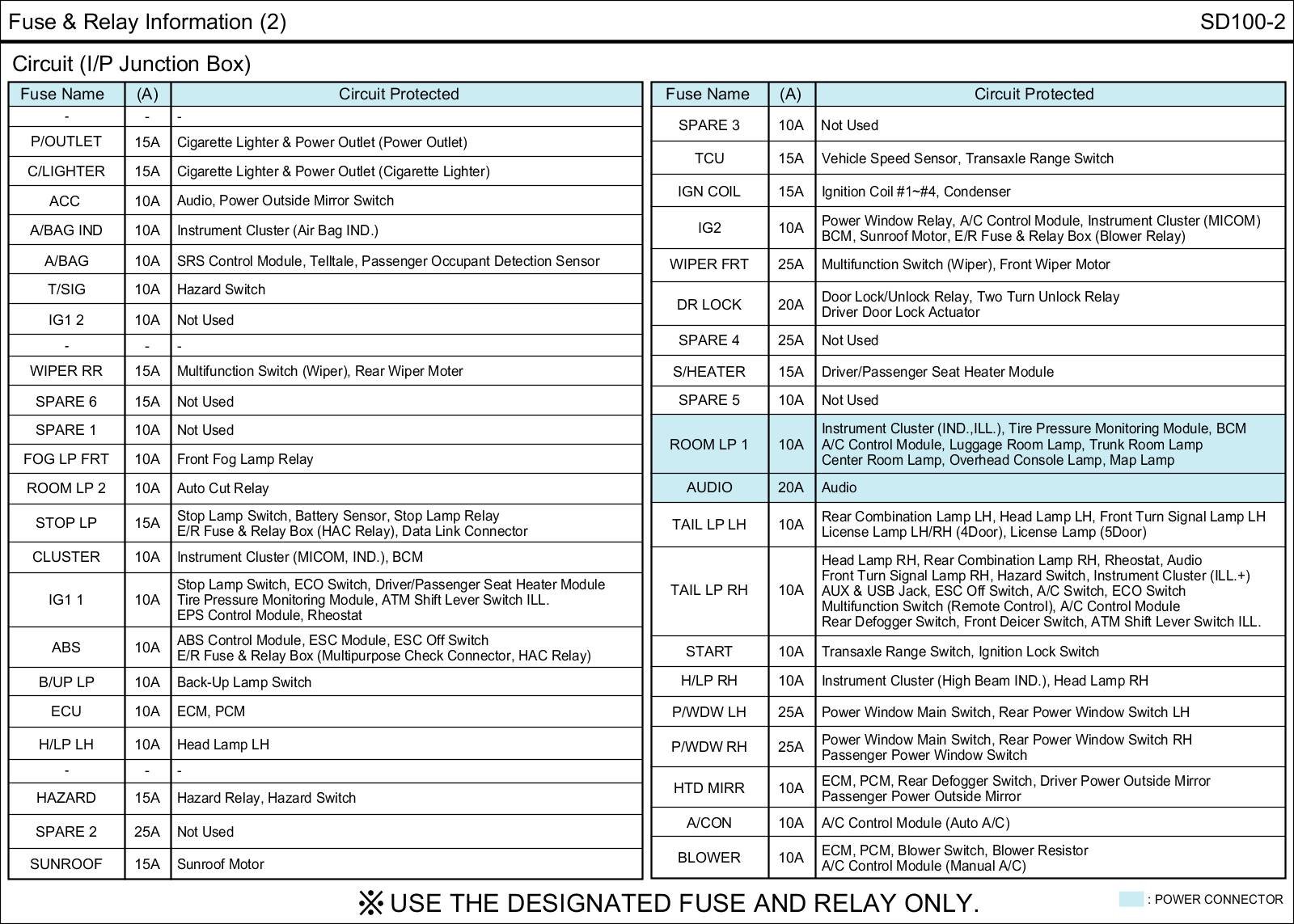

I/P Junction Box Circuit Details:
