Main Relay (Computer/Fuel System)
>>
Locations
>>
Fuse & Relay Information

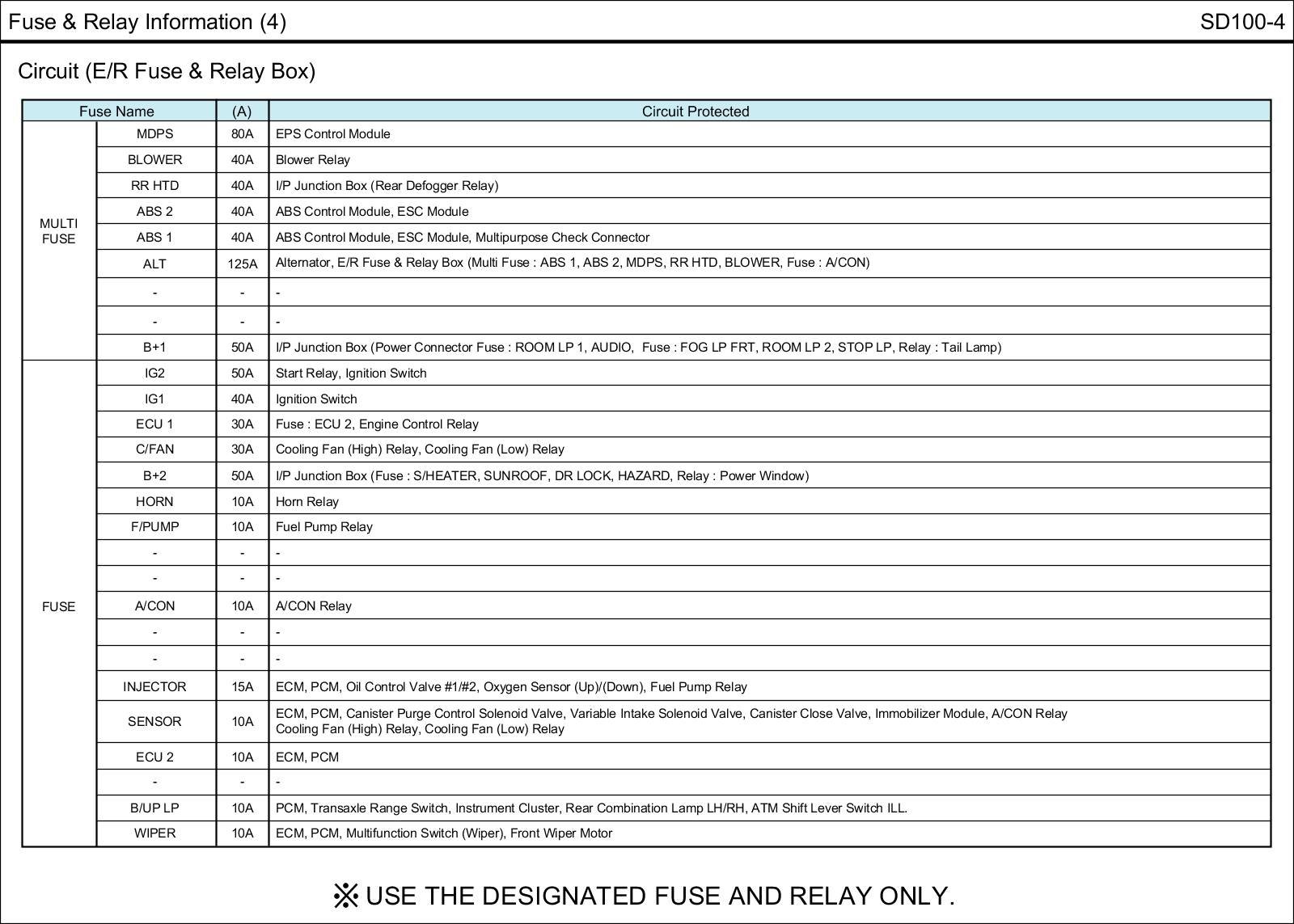

Fuse & Relay Information
Fuse & Relay Information

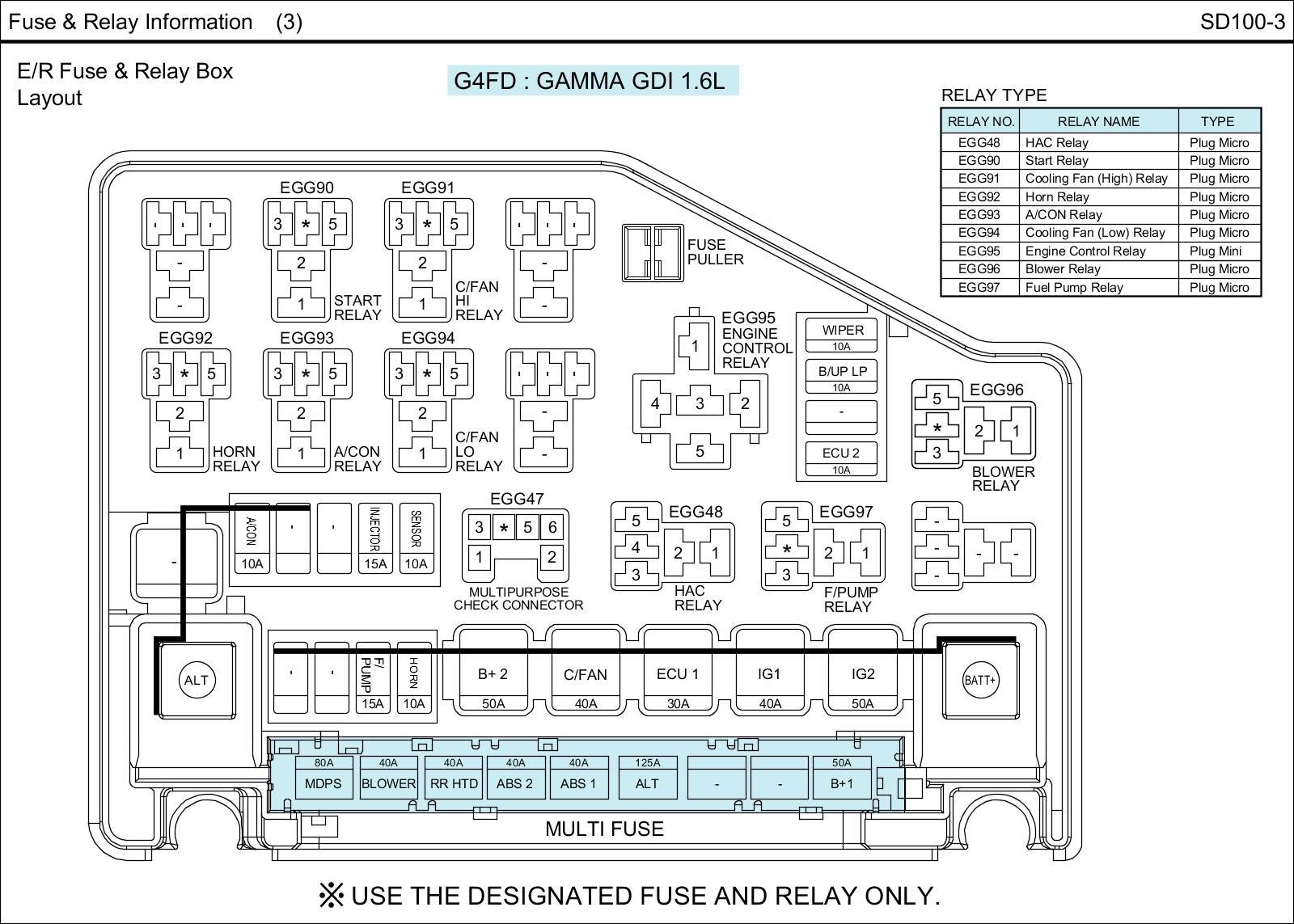

E/R Fuse & Relay Box View:

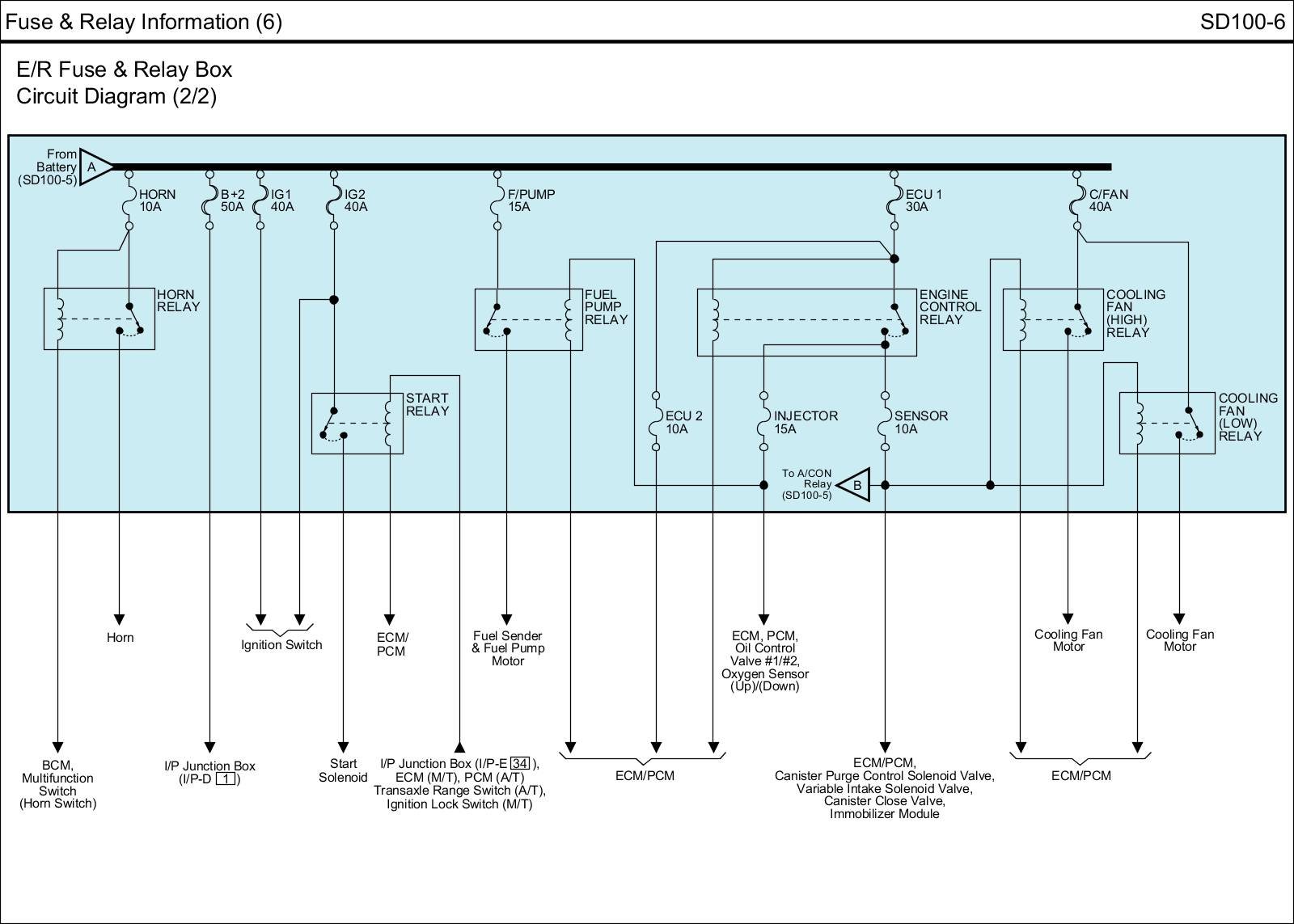

E/R Fuse & Relay Box Circuit Details:
E/R Fuse & Relay Box View:
