Fuse: Locations

Fuse & Relay Information


I/P Junction Box View:




I/P Junction Box Circuit Details:




E/R Fuse & Relay Box View:

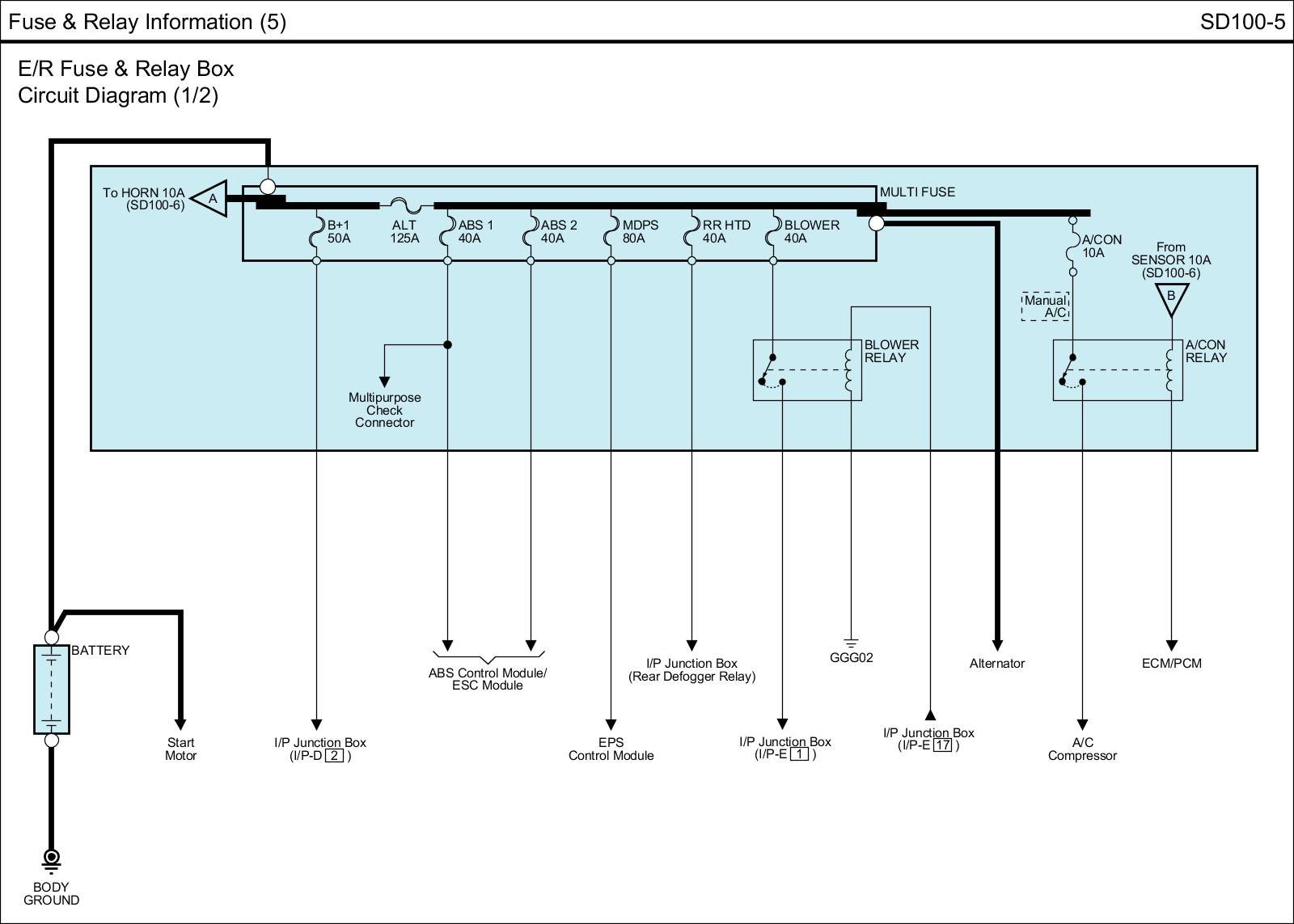

E/R Fuse & Relay Box Circuit Details:




E/R Fuse & Relay Box View:




E/R Fuse & Relay Box View:
