Control Module, A/T

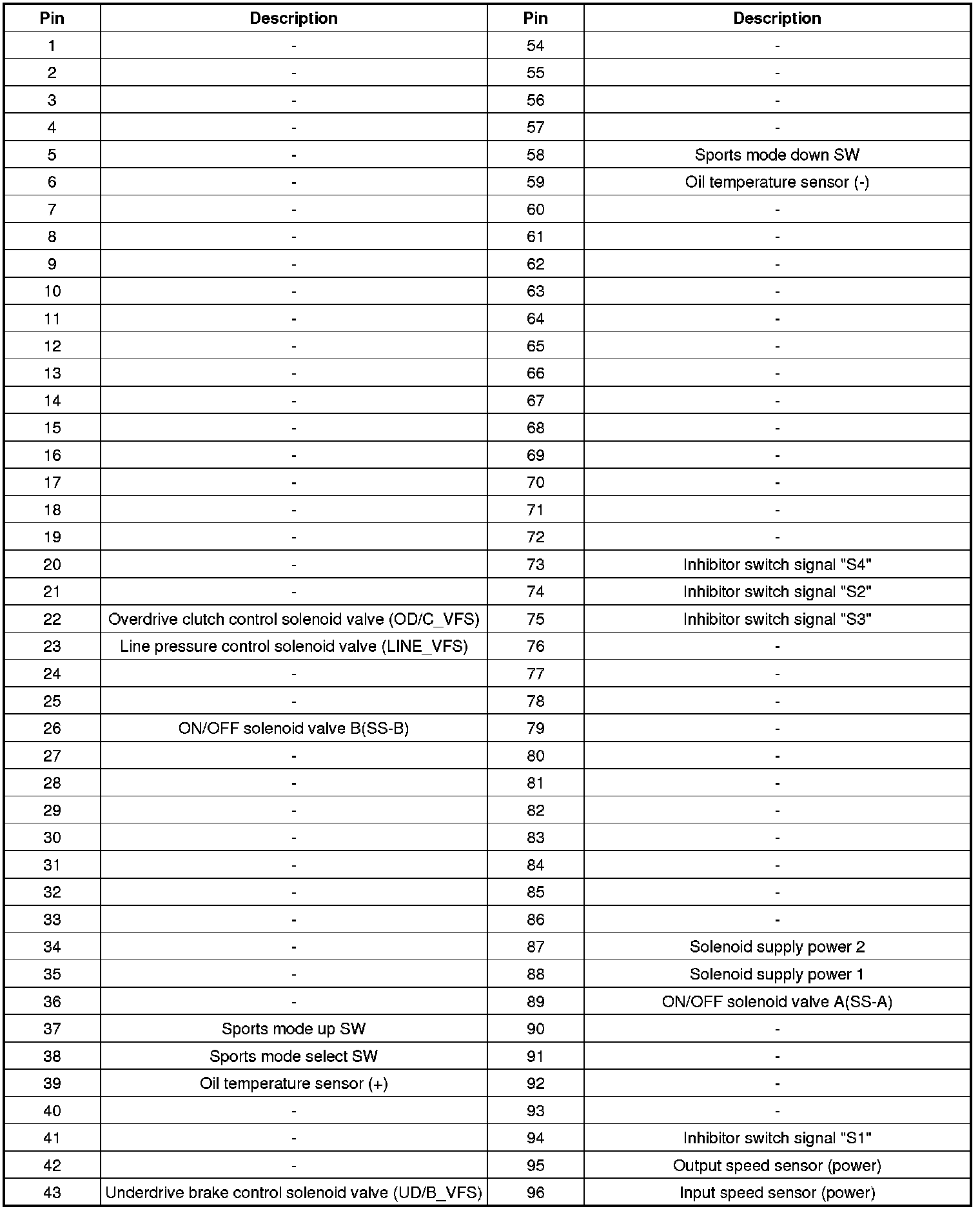

1. TCM Connector and Terminal Function





2. TCM Terminal Function

Connector [CHG-AA]

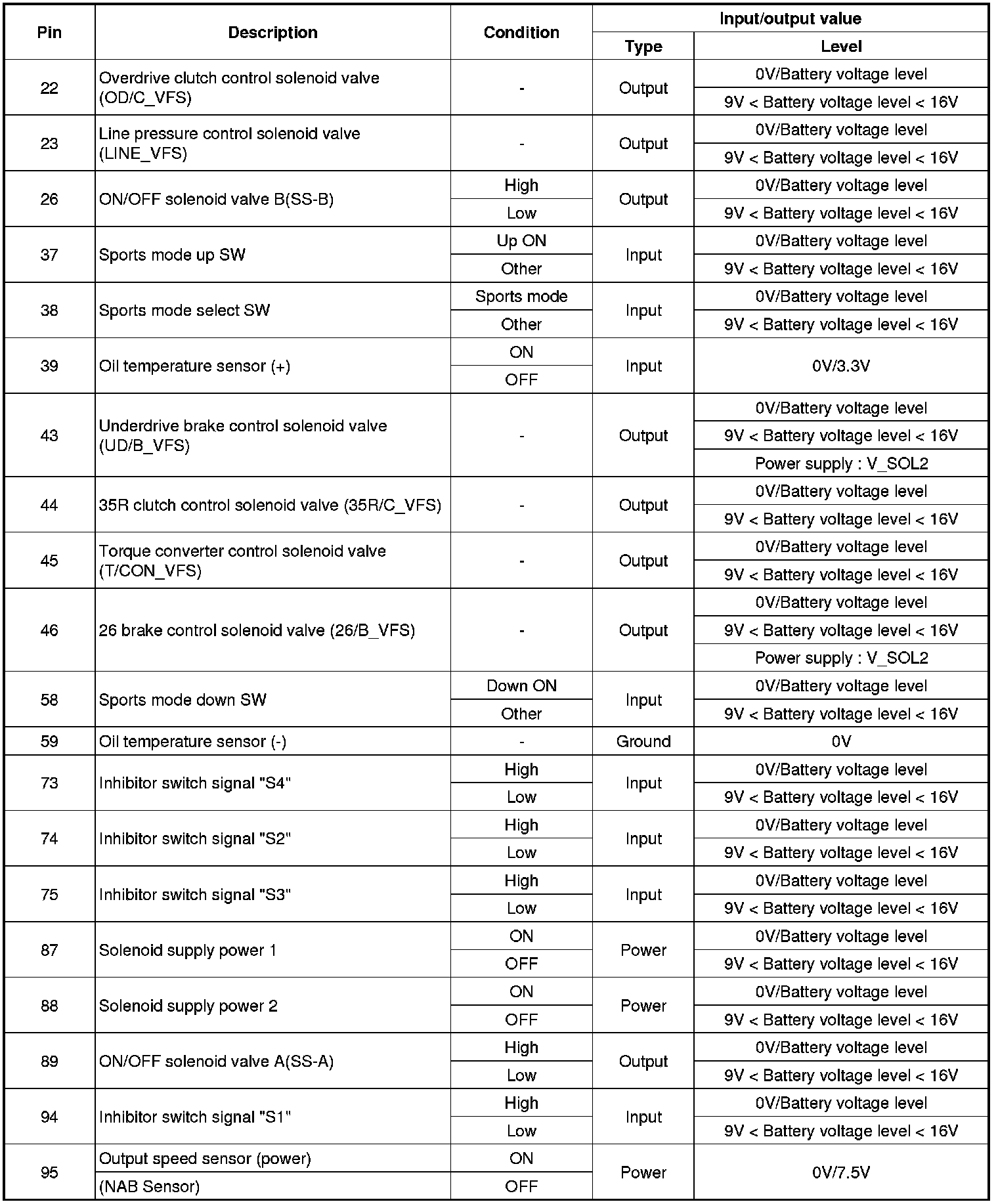

TCM Terminal Input/ Output Signal

Connector [CHG-AA]










Circuit Diagram
