Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Trunk / Liftgate Lock Switch

Power Trunk / Liftgate Lock Switch

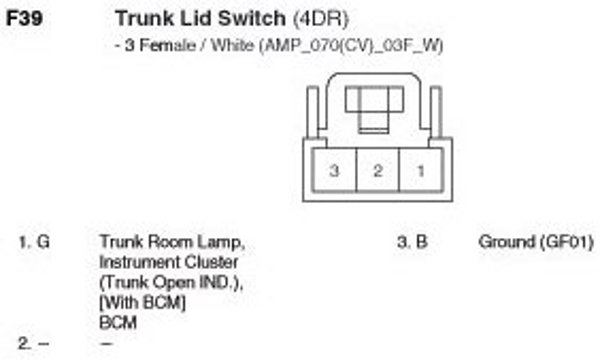

F39 Trunk Lid Switch (4DR):
