Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector

Multiple Junction Connector

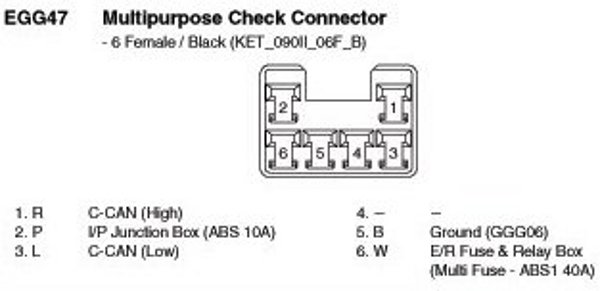

EGG47 Multipurpose Check Connector:
