Home >> Hyundai >> 2012 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Passenger Front Impact Sensor

Passenger Front Impact Sensor

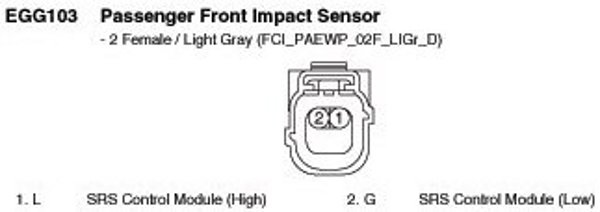

EGG103 Passenger Front Impact Sensor:
