Components and Components Location: Components

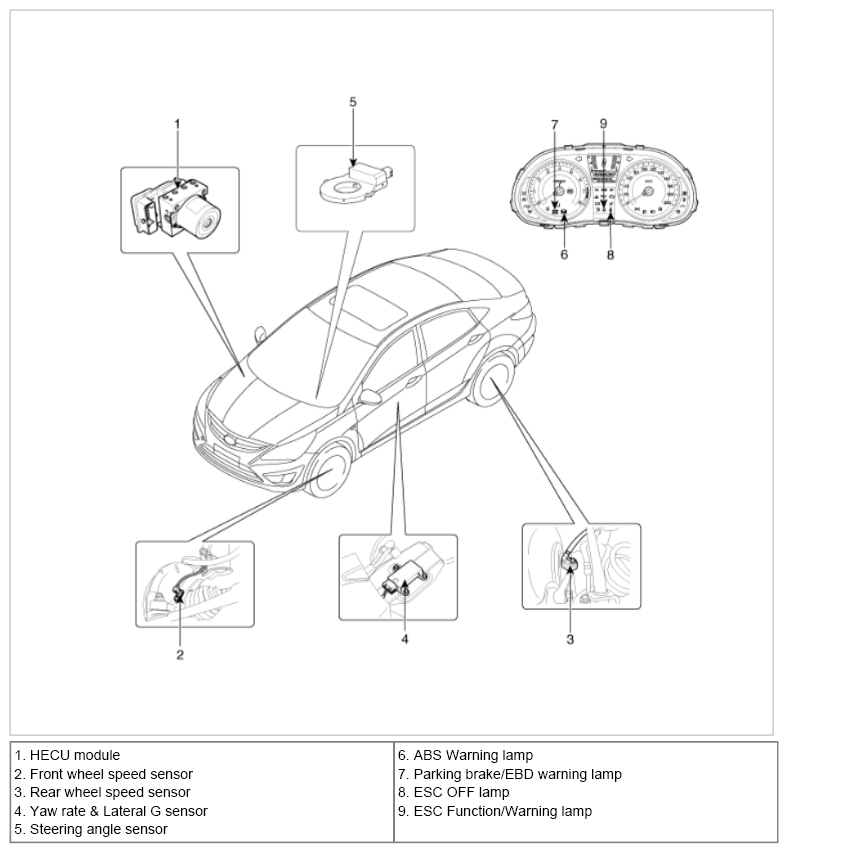

Fig 1: Locating Electronic Stability Control (ESC) System Components

G08805722

Courtesy of HYUNDAI MOTOR AMERICA
