Variant coding

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON"
  3. Using GDS, Perform Variant coding program. (Fig 1)
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON"
  6. Go to "COMPONENT INSPECTION " procedure.

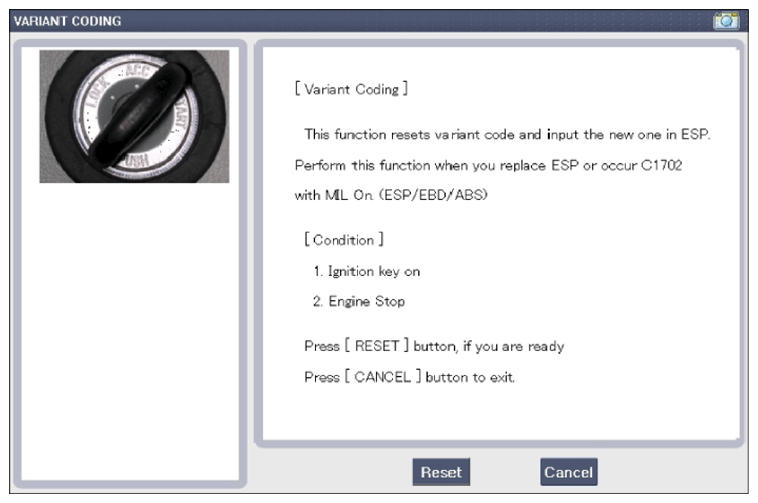

    Fig 1: Display - Variant Coding GDS Diagnostic Item
    G08805063Courtesy of HYUNDAI MOTOR AMERICA
