Neutral Start Relay: Locations

E/R Fuse & Relay Box


E/R Fuse & Relay Box View:

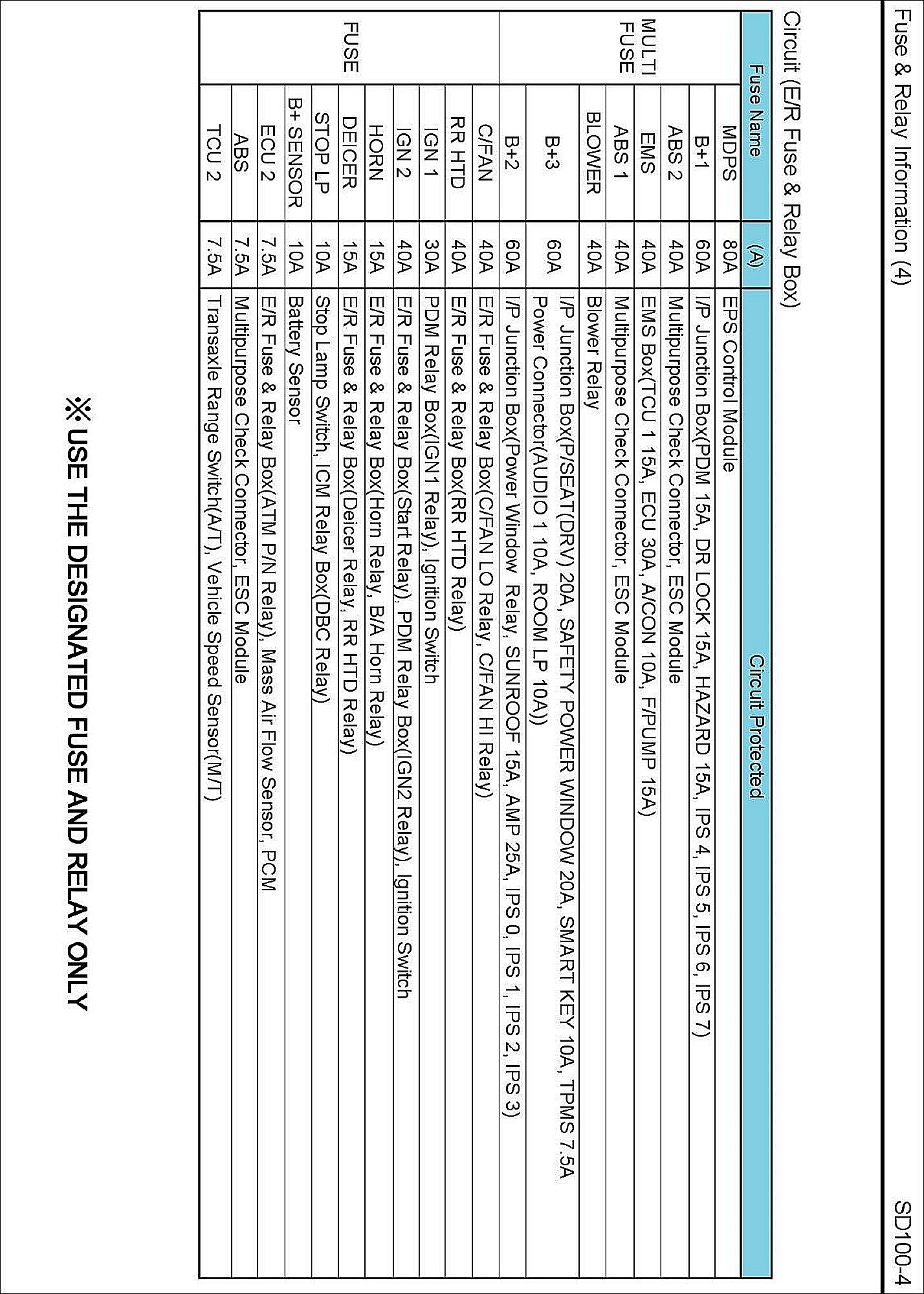

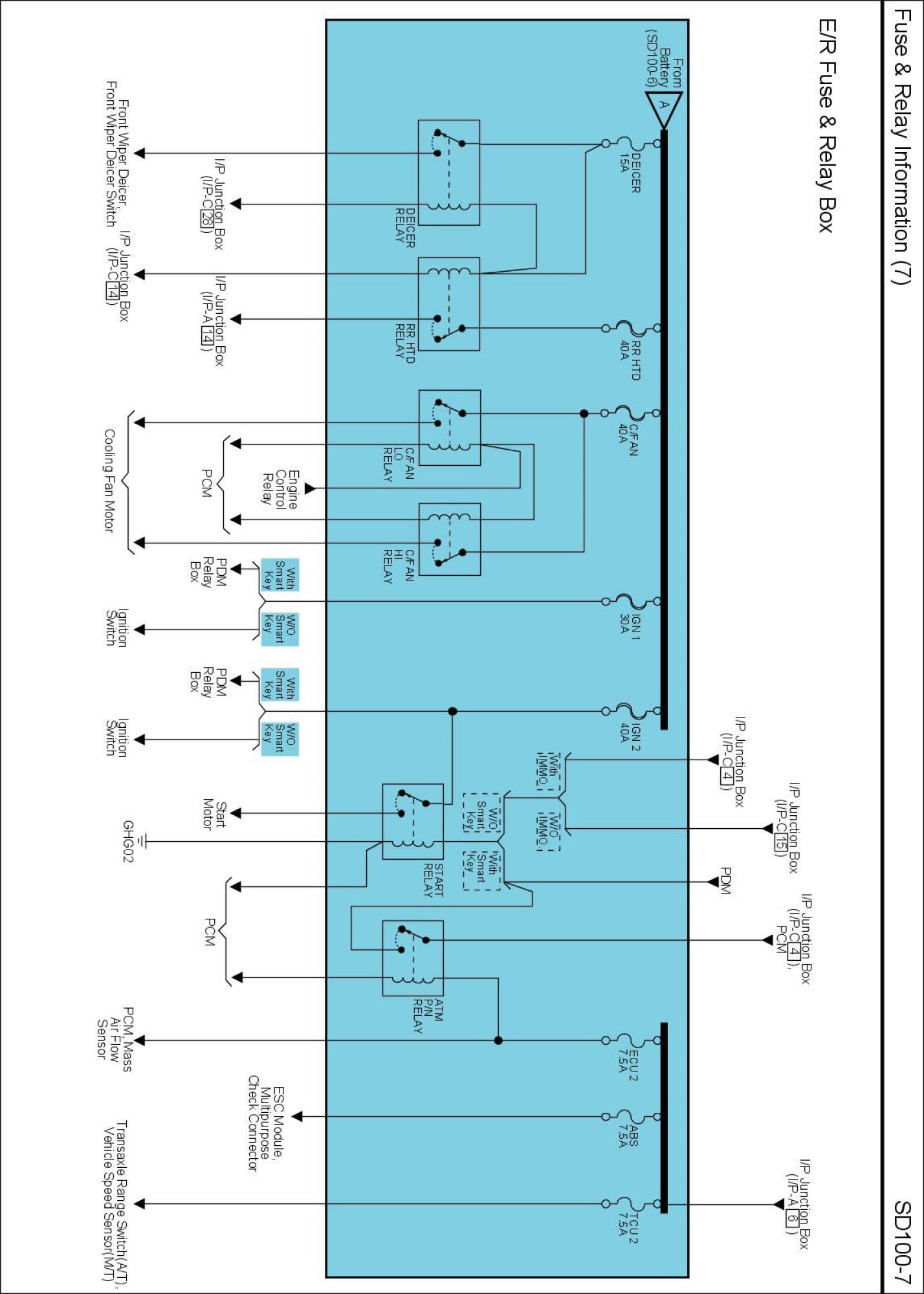

E/R Fuse & Relay Box Circuit Details:




E/R Fuse & Relay Box View:

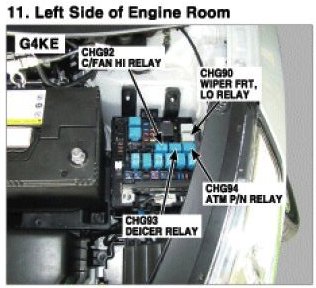

Photo 11
