Home >> Hyundai >> 2011 >> Tucson AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Receiver >> Passenger Smart Key Outside Handle

Passenger Smart Key Outside Handle

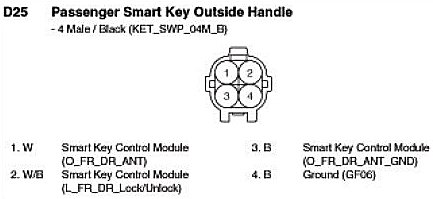

D25 Passenger Smart Key Outside Handle:
