Home >> Hyundai >> 2011 >> Tucson AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Switch >> Ignition Switch (W/O Smart Key)

Ignition Switch (W/O Smart Key)

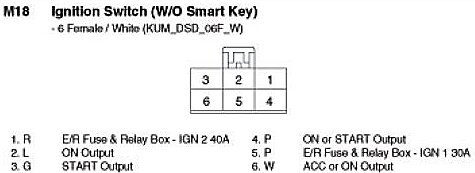

M18 Ignition Switch (W/O Smart Key):
