Combination Switch

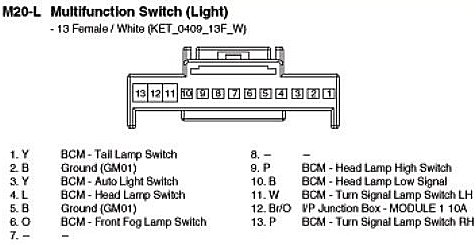

M20-L Multifunction Switch (Light):

M20-R Multifunction Switch (Remote Control):

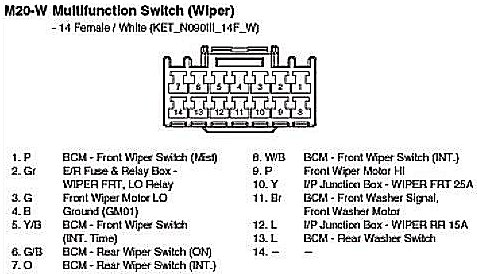

M20-W Multifunction Switch (Wiper):
