Power Trunk / Liftgate Lock Switch
Power Trunk / Liftgate Lock Switch

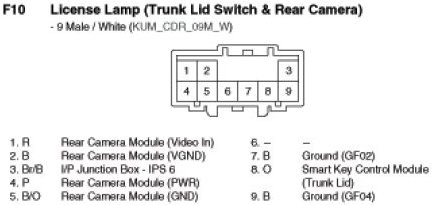

F10 License Lamp (Trunk Lid Switch & Rear Camera):
