Engine Control Module
>>
Locations
>>
Fuse and Relay Information

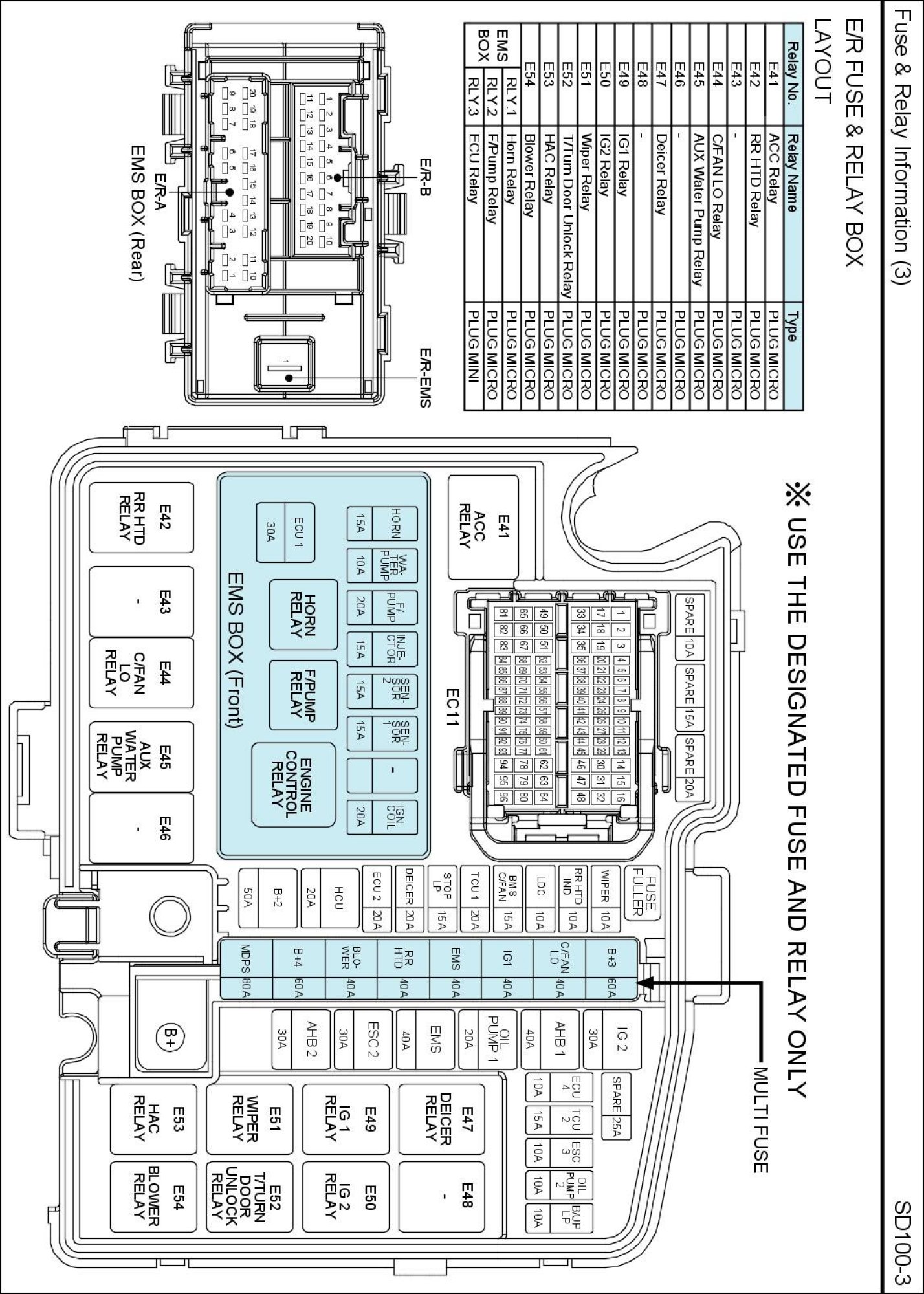

E/R Fuse & Relay Box View:

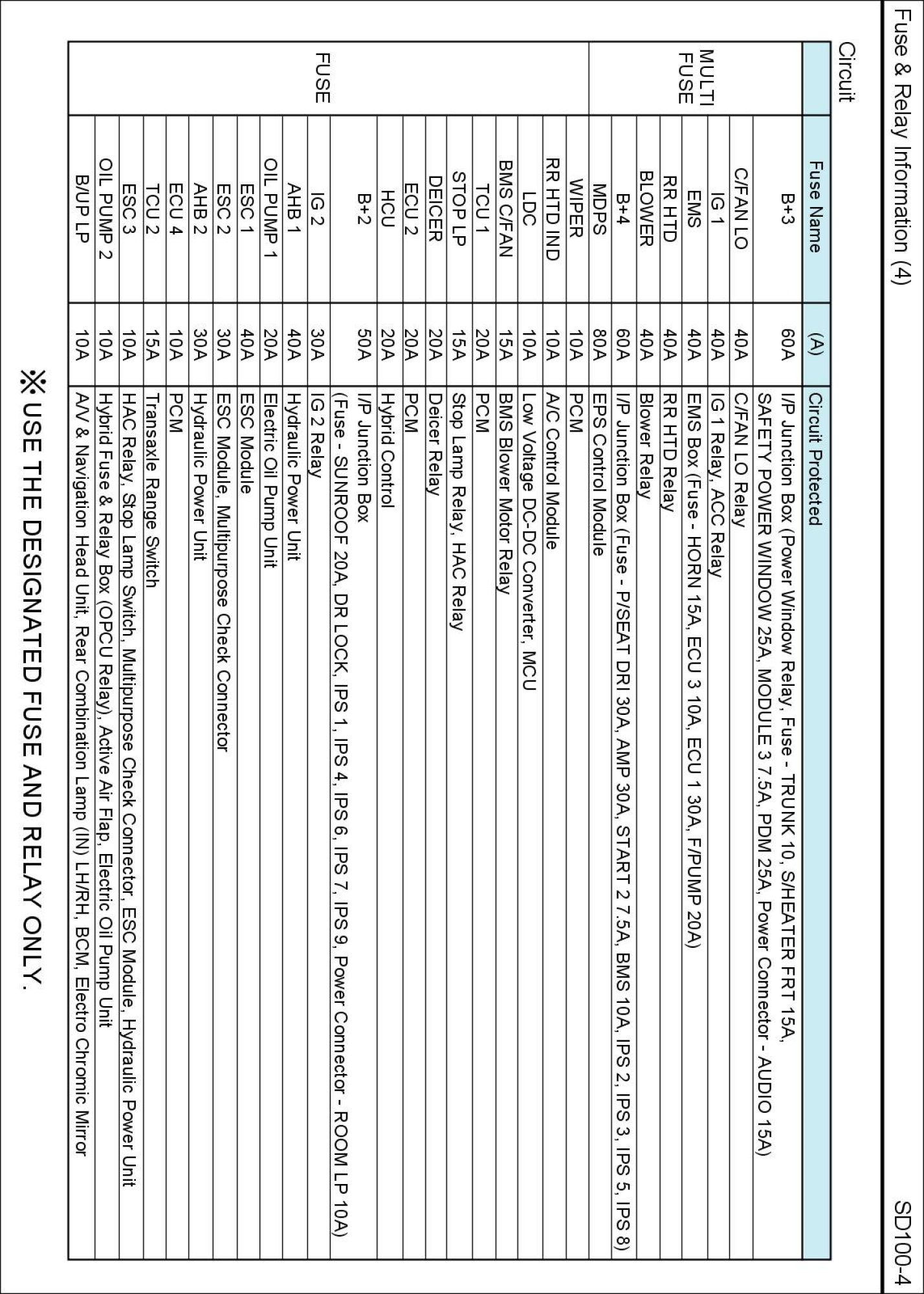

E/R Fuse & Relay Box Circuit Details:

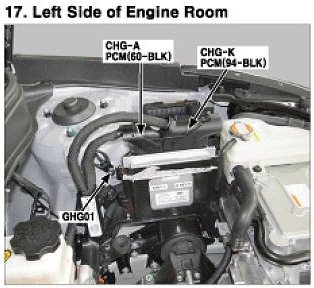

photo 17
