Home >> Hyundai >> 2011 >> Genesis Sedan V8-4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> Headlamp Alignment Control Module

Headlamp Alignment Control Module

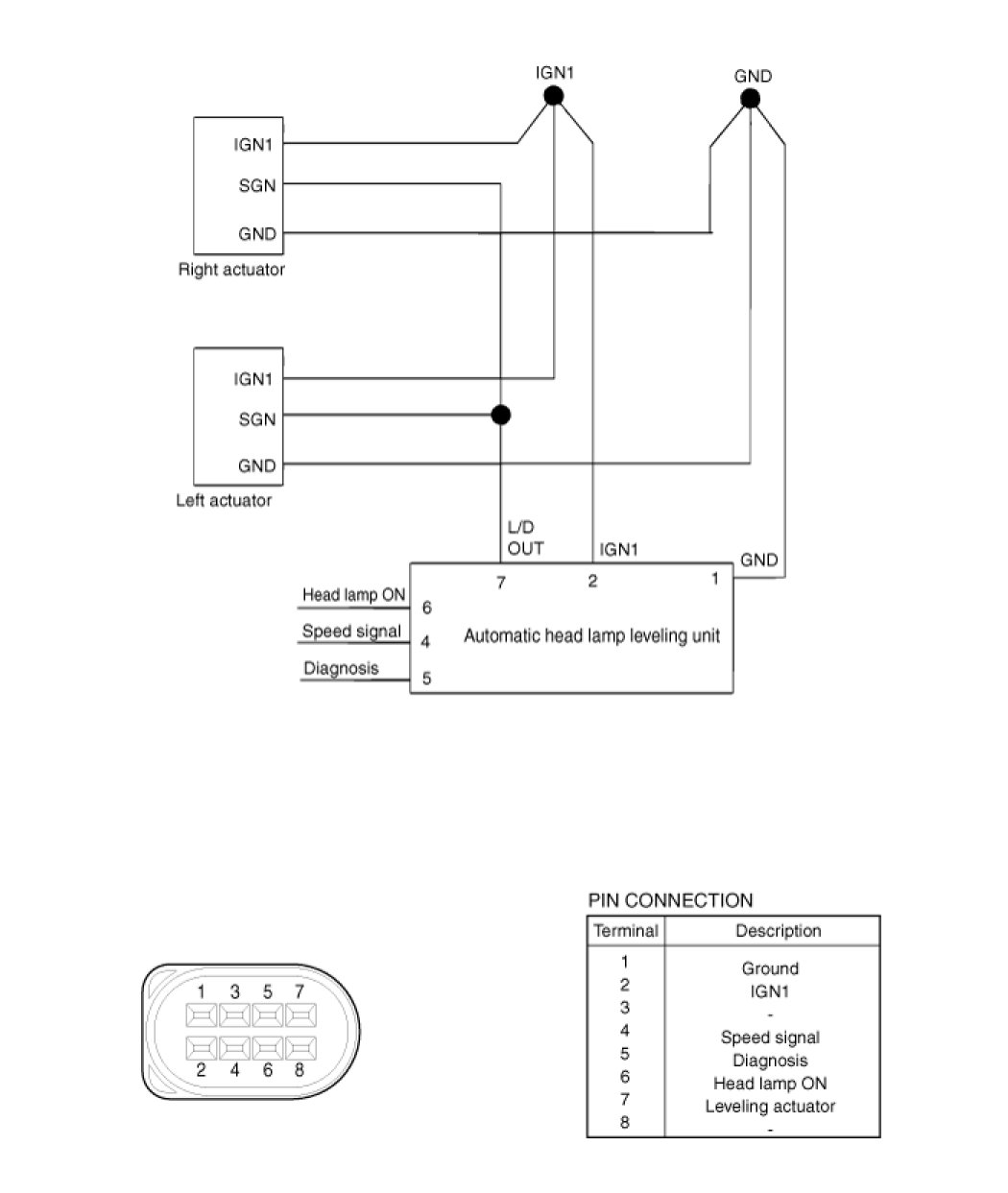

Circuit Diagram
