Memory Positioning Switch: Testing and Inspection





Inspection

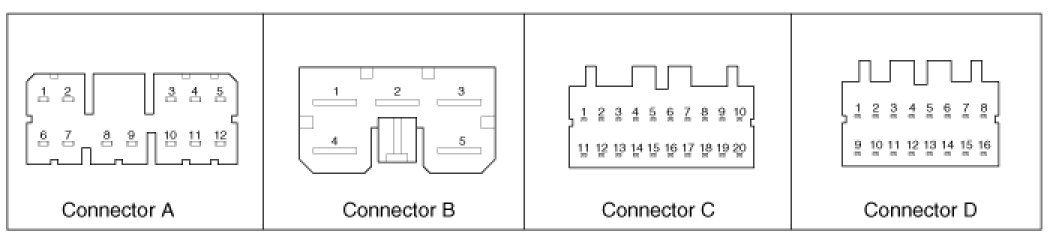

IMS Connectors

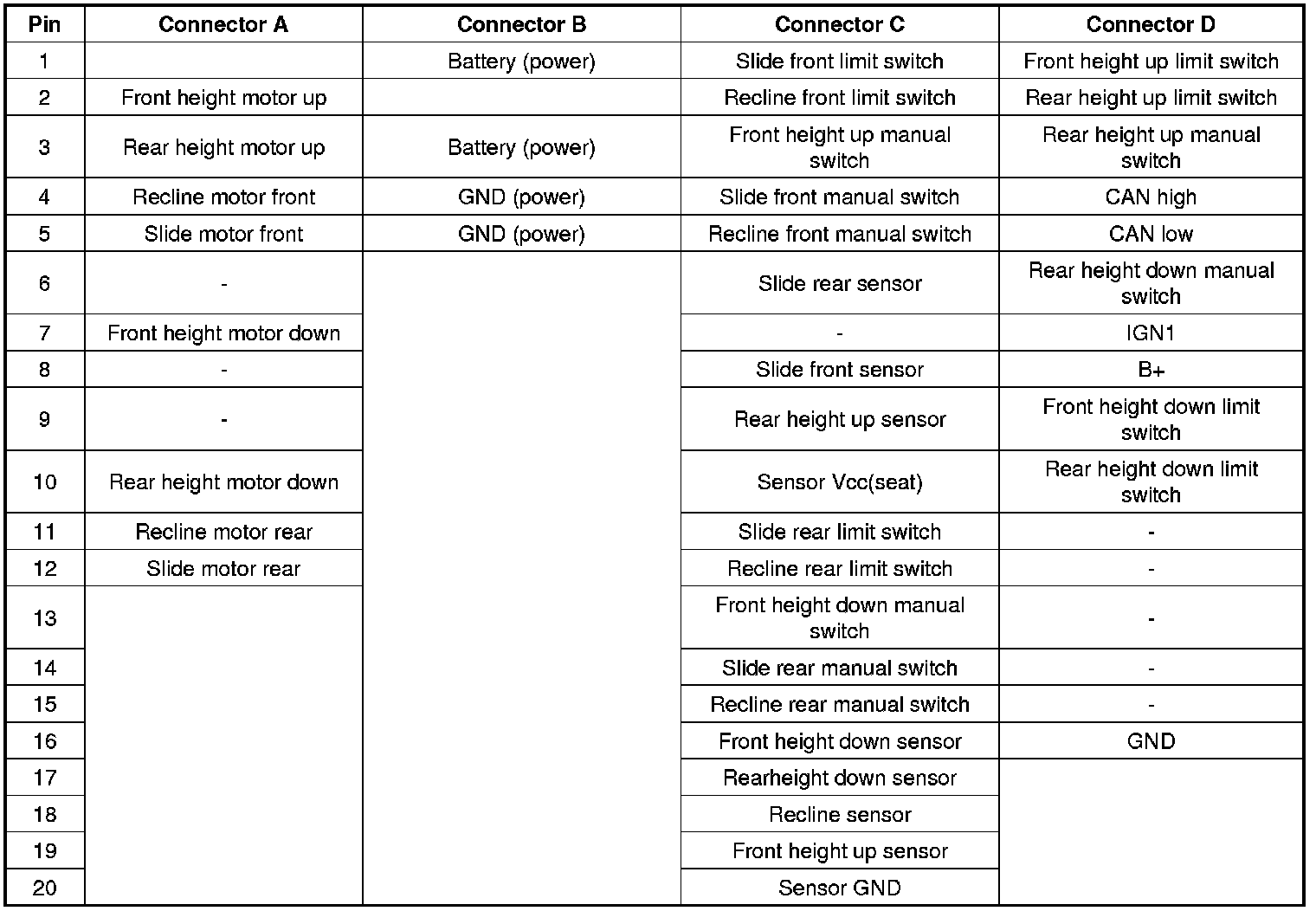

Connector Pin Name

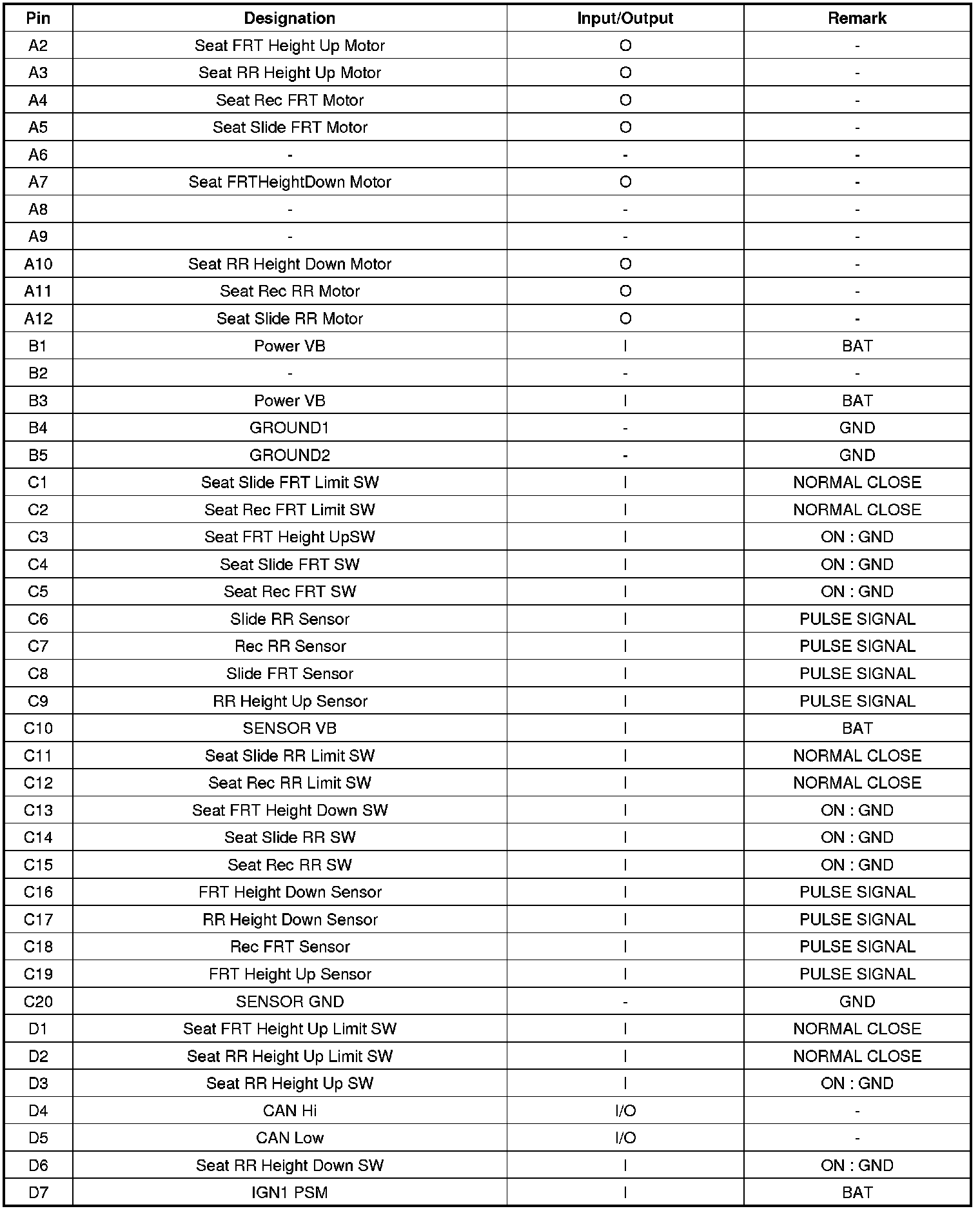

IMS Input/Output Specification
