System Relay: Locations
E/R Junction Box LH
E/R Junction Box LH View:
E/R Junction Box LH Circuit Details:

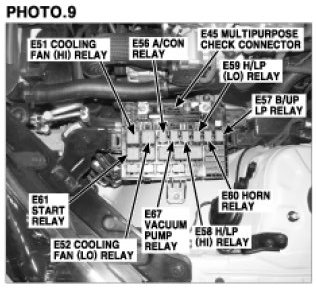

Photo 9
