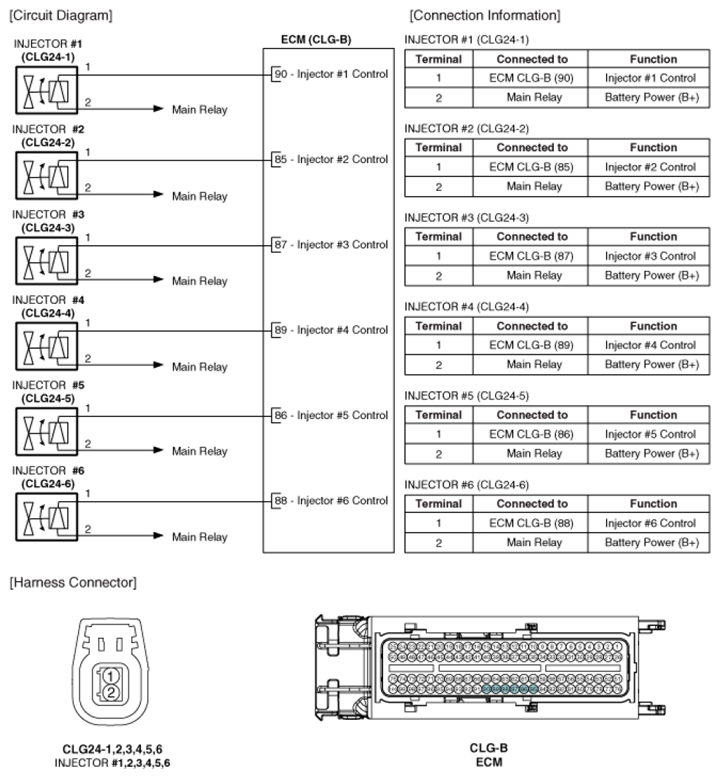

Home >> Hyundai >> 2011 >> Genesis Coupe 3.8 Track, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> Injector >> Schematic Diagrams >> Circuit Diagram
