Hyundai
>>
2011
>>
Genesis 4.6
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Smart Key System
>>
Smart Key Unit
>>
Circuit Diagram
Circuit Diagram

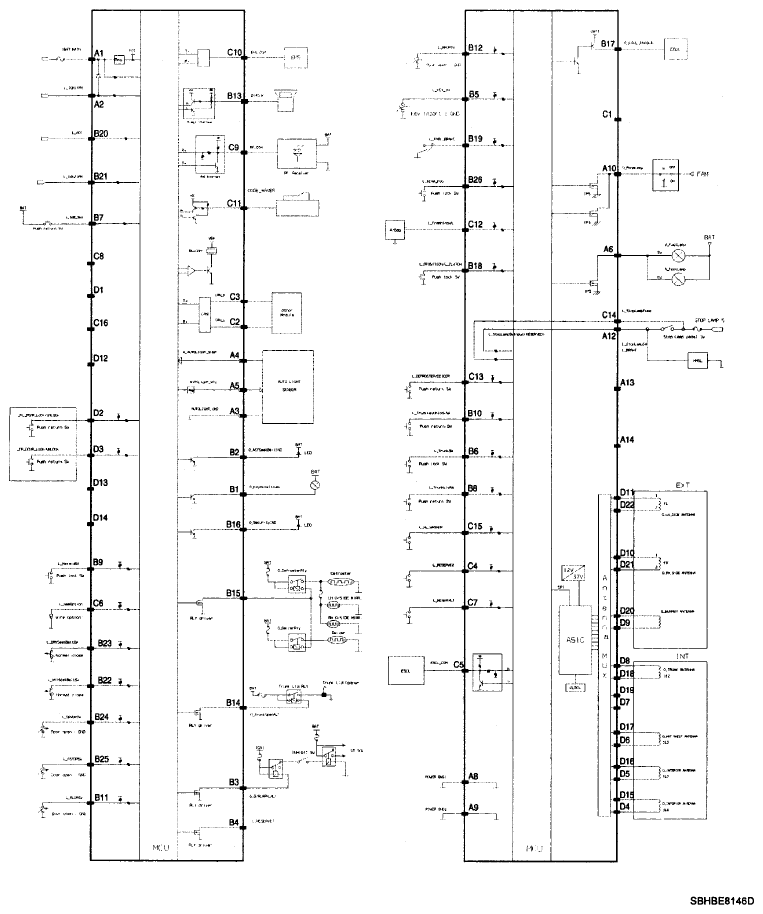

Fig 1: Smart Key Unit Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
