Home >> Hyundai >> 2011 >> Equus V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Seat Temperature Control Module >> Driver Seat Warmer Module (W/O CCS)

Driver Seat Warmer Module (W/O CCS)

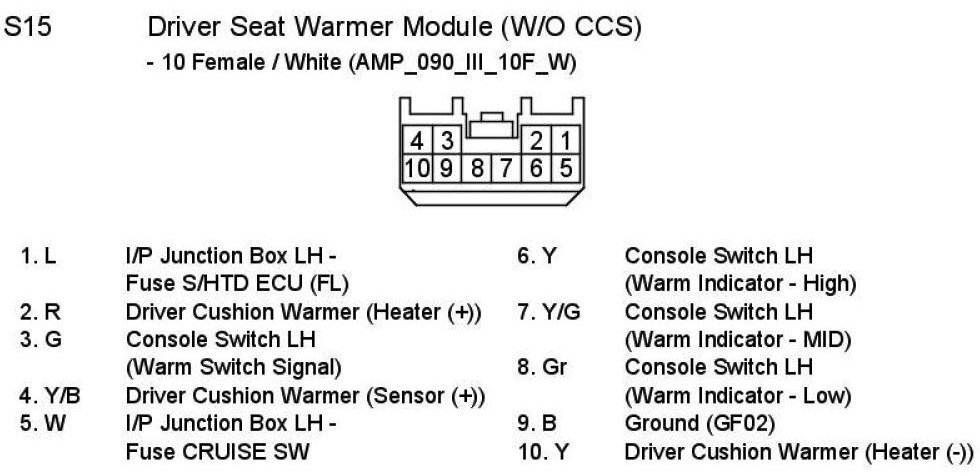

S15 Driver Seat Warmer Module (W/O CCS):
