Home >> Hyundai >> 2011 >> Equus V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ride Height Sensor, Suspension Control >> Front Height Sensor RH

Front Height Sensor RH

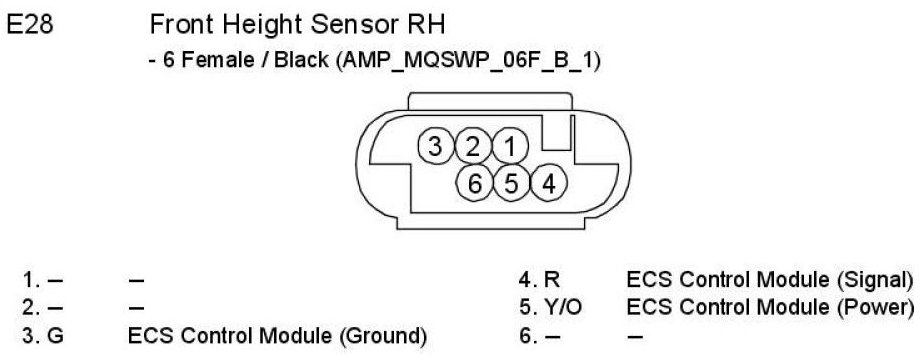

E28 Front Height Sensor RH:
