Home >> Hyundai >> 2011 >> Equus V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Receiver >> Front Smart Outside Handle LH

Front Smart Outside Handle LH

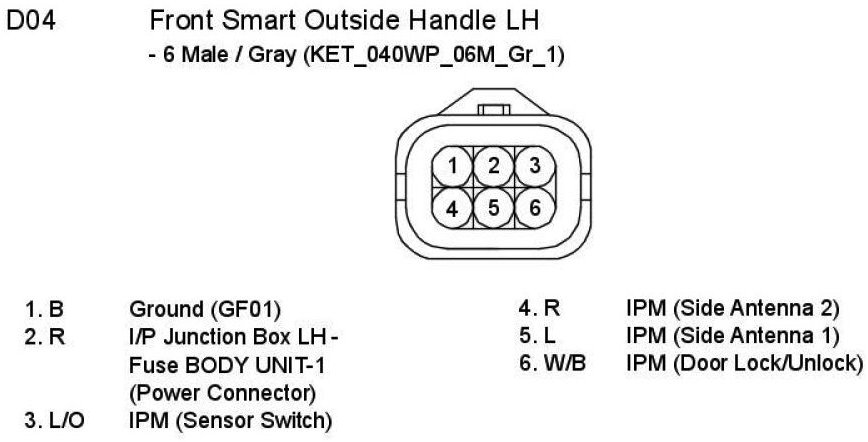

D04 Front Smart Outside Handle LH:
