Home >> Hyundai >> 2011 >> Equus V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> Hood Sensor/Switch (For Alarm)

Hood Sensor/Switch (For Alarm)

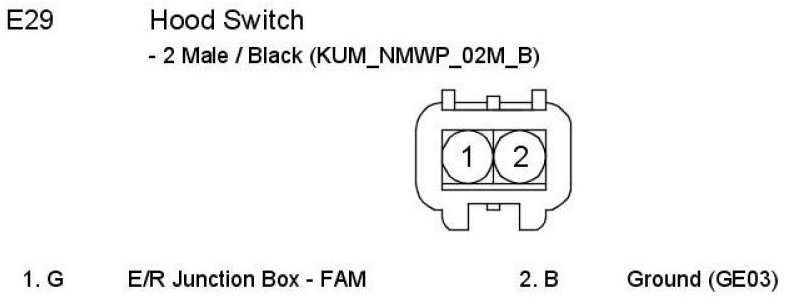

E29 Hood Switch:
