Repair Procedures: Inspection

Power Trunk Lid Inspection With GDS

1. Check the power trunk module input/output value by using the GDS. If the operation of power trunk module is abnormal, replace power trunk drive unit.
2. To check the DTC of the power trunk module, select "PTM"
3. Select "Input/output monitoring".

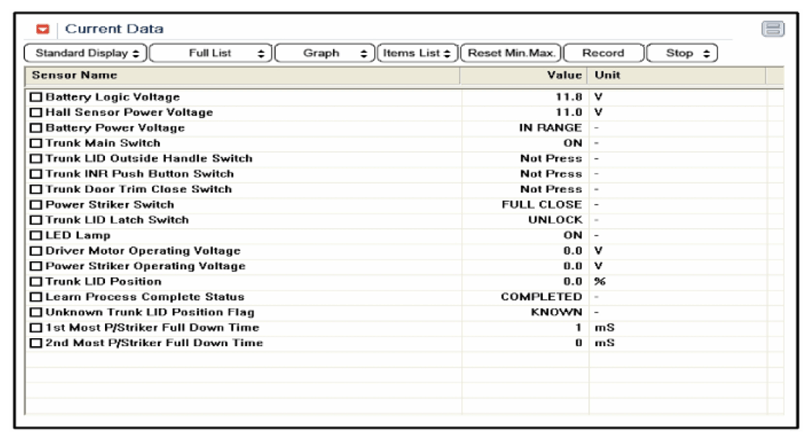

   Fig 1: Display - Select Input/Output Monitoring

   Courtesy of HYUNDAI MOTOR CO.
