Multiple Junction Connector
>>
Multipurpose Check Connector
Multipurpose Check Connector

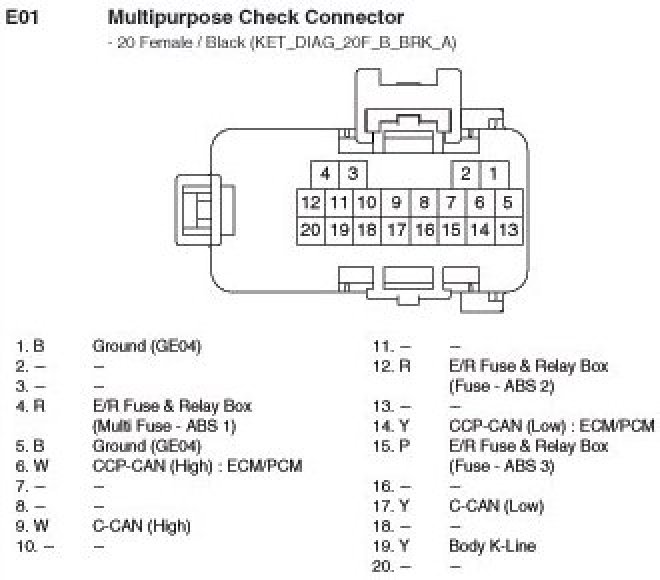

E01 Multipurpose Check Connector:
