Power Window Relay
>>
Locations
Power Window Relay: Locations
Component Location
I/P Junction Box

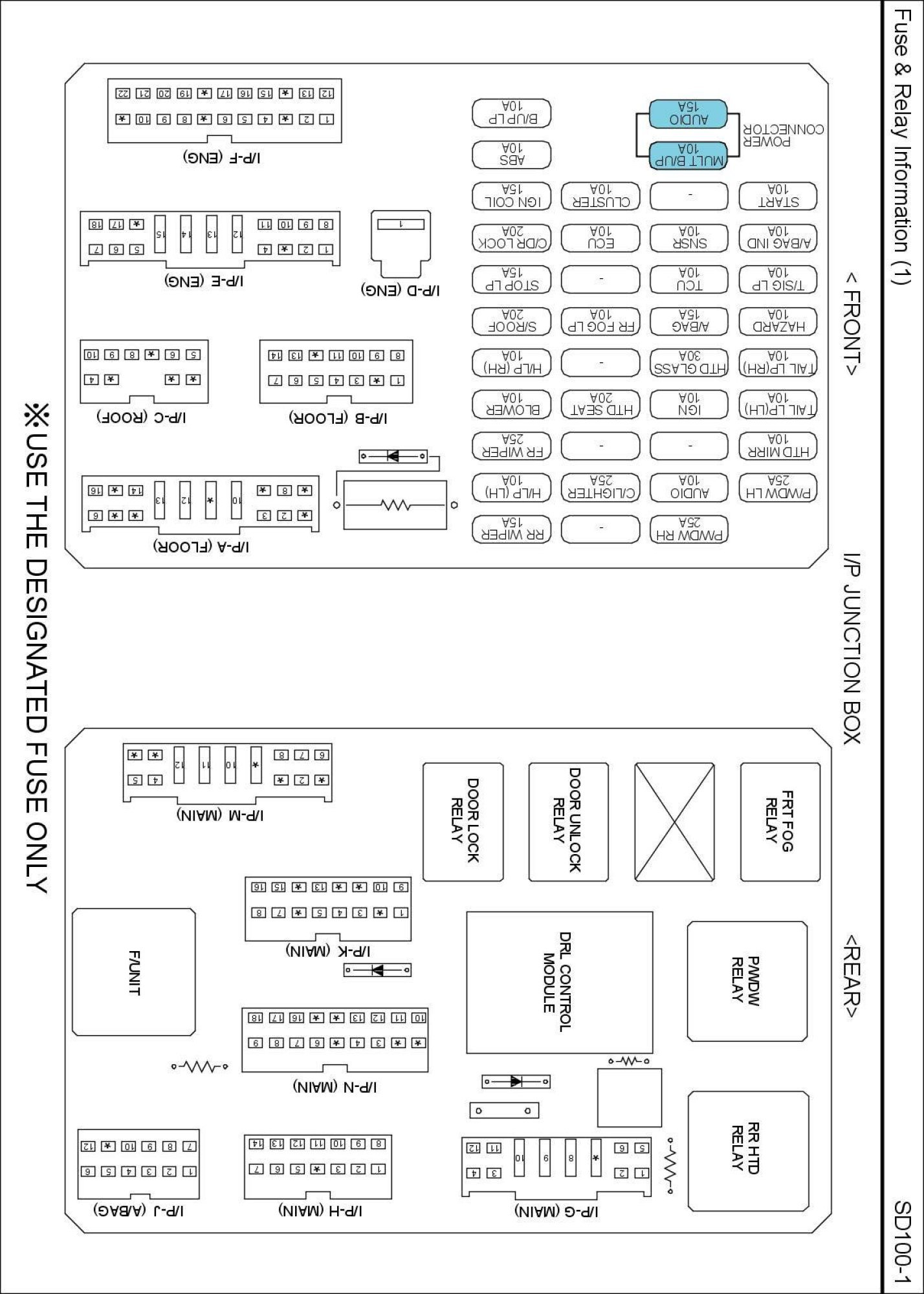

I/P Junction Box View:

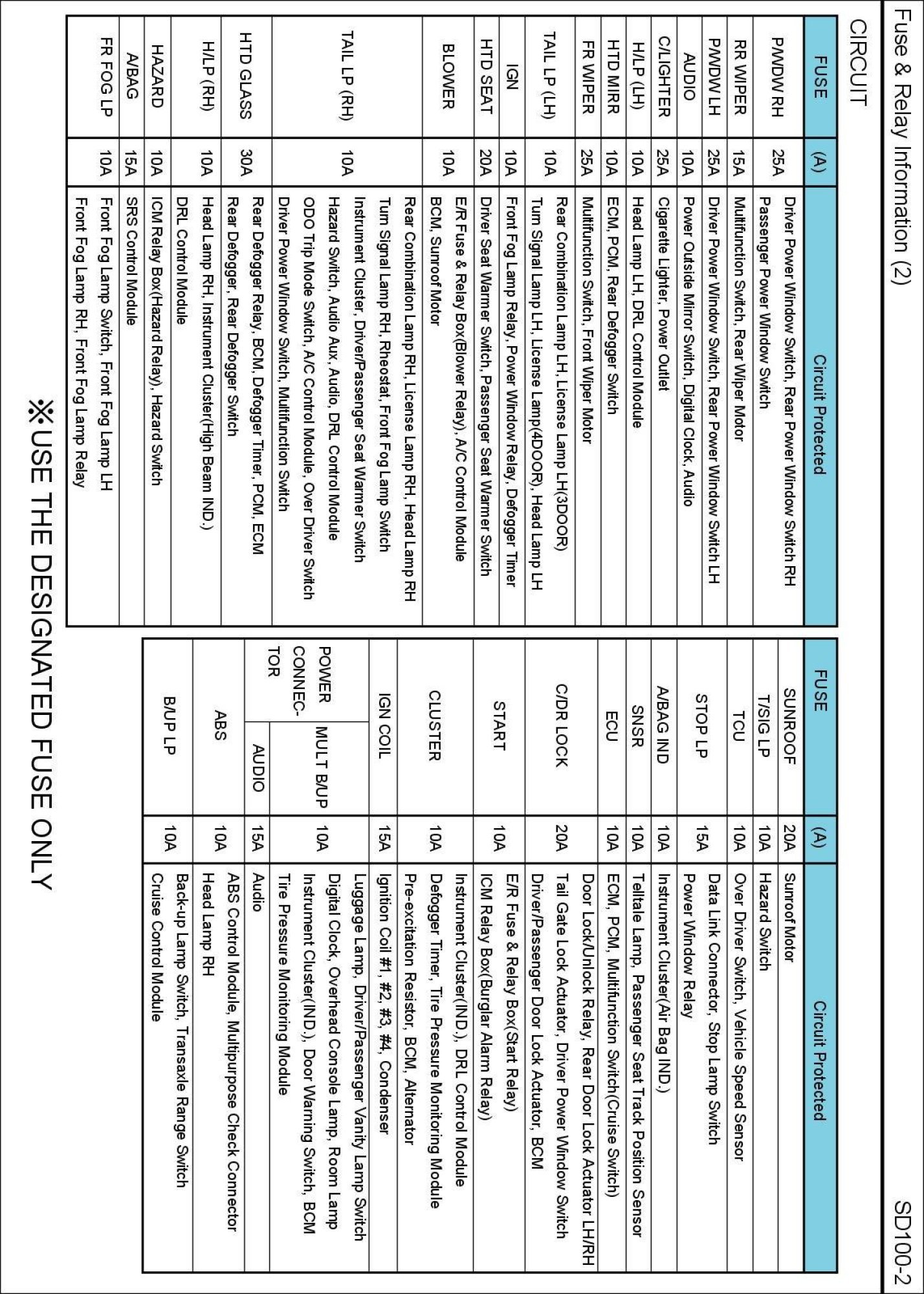

I/P Junction Box Circuit Details:

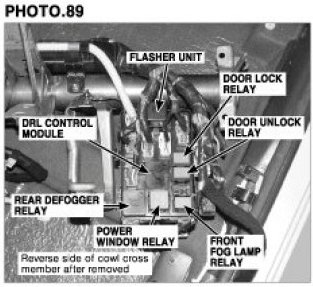

Photo 89
