Starter Relay: Locations

E/R Fuse & Relay Box


E/R Fuse & Realy Box View:






E/R Fuse & Relay Box


E/R Fuse & Relay Box View:

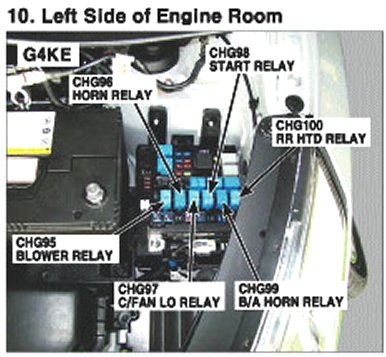

Photo 10 Left Side of Engine Room
