Flywheel

Flywheel

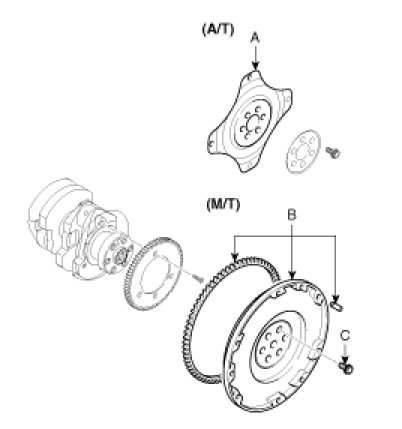

M/T : Install flywheel(B).

Tightening torque 117.7 - 127.5 N.m (12 - 13 kgf.m, 86.8 - 94.0 lb-ft)






NOTE:
Always use new flywheel(drive plate) bolts(C).
Apply sealant to the screw part (8mm from the end of the bolt) when using new flywheel bolts.
Sealant : Three bond 2403, Loctite 200 or 204
