Oil Pump, Engine





Components

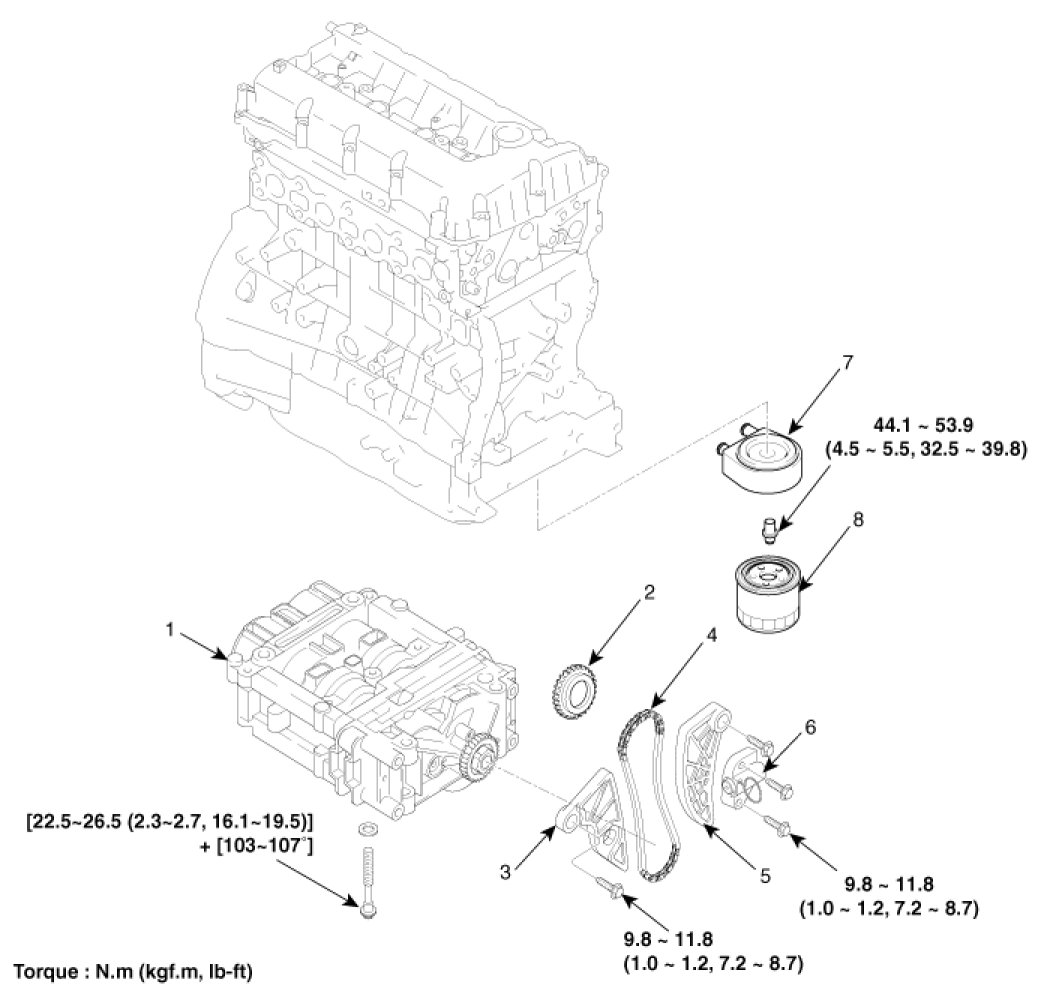

[2.4L Engine only (Balance shaft module type)]

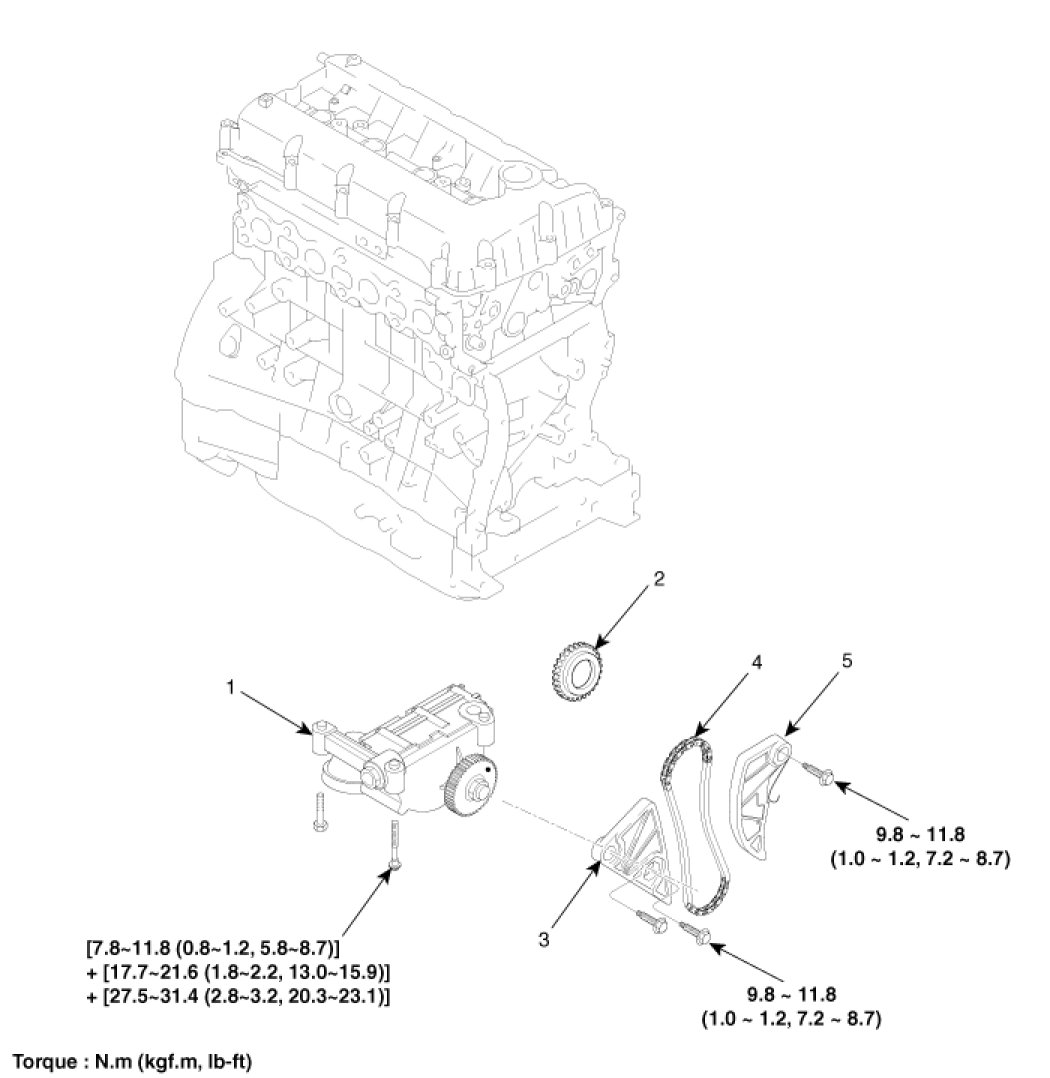

[2.0L Engine only (Oil pump type)]
