Ambient Temperature Sensor / Switch HVAC: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

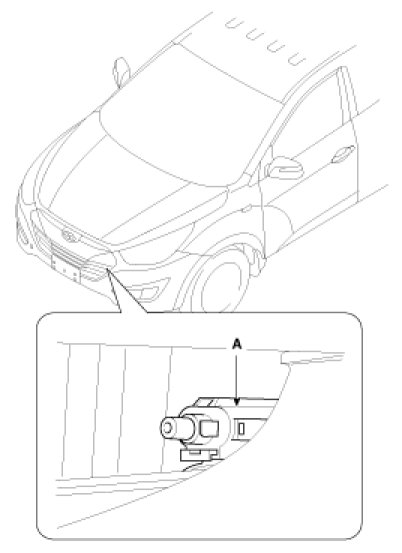

2. Disconnect the connector and then remove the ambient temperature sensor (A).




3. Installation is the reverse order of removal.
